Using WaveEasy with the GX1110 Arbitrary Waveform Generator

Knowledge Base Article # Q200138

Read Prior Article Read Next Article
Summary How to create a waveform and download it to the GX1110
WaveEasy can interface with the Geotest GX1110 Arbitrary Waveform Generator software front panel, allowing users to create waveforms using the powerful waveform editor and then downloading the wavefform into the GX1110 memory to generate the wave. The following steps described the process:

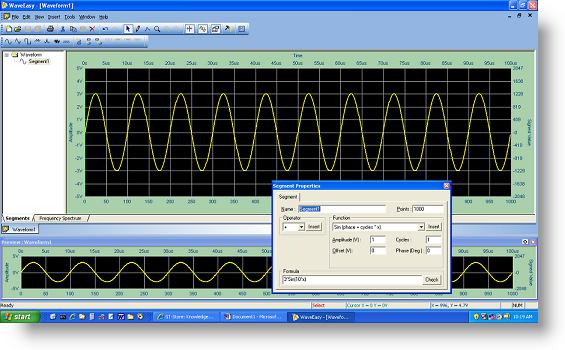

1. Create either a standard waveform, a complex mathematical function, or a free hand waveform within WaveEasy. Further information on using WaveEasy to create waveforms can be found in the GtWave Manual.

Using WaveEasy with the GX1110 Arbitrary Waveform Generator

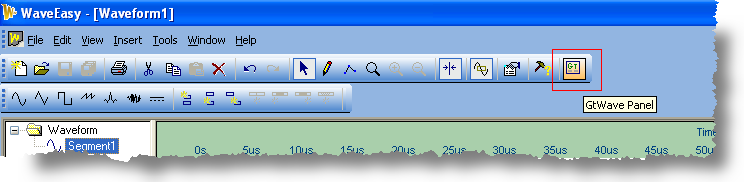

2. Open the GX1110 Software Front Panel from within WaveEasy; Select GtWave Panel from the WaveEasy Tools menu or click on the GtWave Panel button in the toolbar as shown here:

Using WaveEasy with the GX1110 Arbitrary Waveform Generator

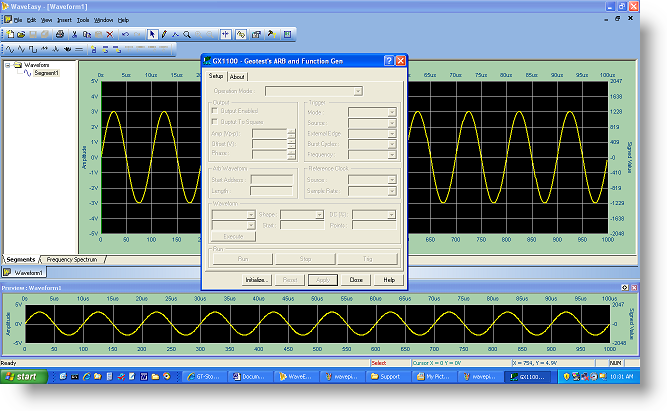

The GtWave Panel will be displayed:

Using WaveEasy with the GX1110 Arbitrary Waveform Generator

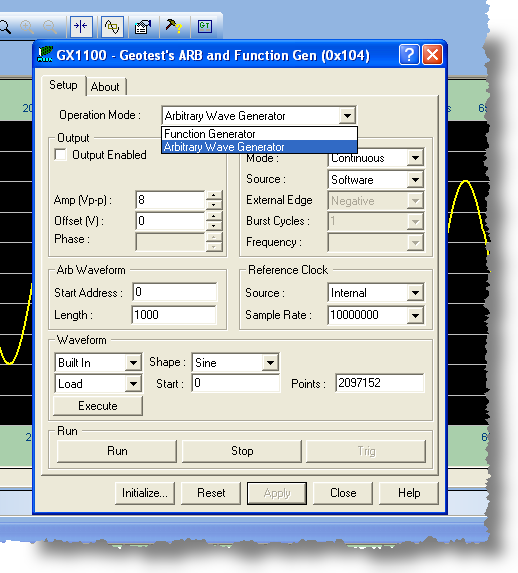

3. Initialize the GX1110 Software Front Panel and select Arbitrary Waveform Generator from the Operation Mode drop down list:

Using WaveEasy with the GX1110 Arbitrary Waveform Generator

4. Enter the ARB Start Address (typically 0) and the Length (number of samples) of the waveform you created in WaveEasy:

Using WaveEasy with the GX1110 Arbitrary Waveform Generator

5. Select [! WaveEasy as the source for loading data and enter the Start (Start pointbv typically 0) and the number of points (Points)  you would like to load (typically the waveform size as noted in step 4). Then click Execute:

Using WaveEasy with the GX1110 Arbitrary Waveform Generator

6. Now the waveform data has been loaded from WaveEasy to the GX1110. Make any changes to the set up of the GX1110 such as amplitutde, sample rate, etc. and click on Apply. Check the Output Enabled box to prepare for output.

7. Use the Run button to start generating the wave, and Stop button to suspend the waveform output:

Using WaveEasy with the GX1110 Arbitrary Waveform Generator

Article Date 3/25/2009 1:08:01 PM
Keywords WaveEasy, GX1110, ARB, Arbitrary Waveform Generator, GX1100 Series
