3U i7 Core 2.1 GHz cPCI Controller

  • 3U embedded cPCI controller for use with GX7300 Series PXI chassis
  • Intel i7 Quad Core 2.1 GHz processor
  • On-board Gigabit Ethernet
  • (2) USB ports on front panel

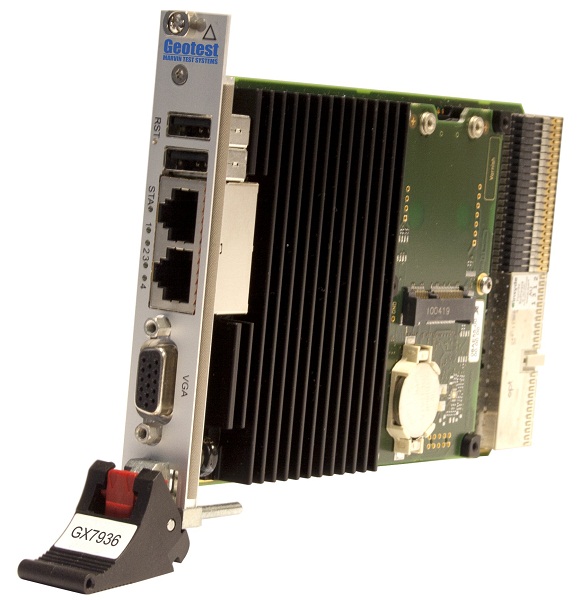

The GX7936 is a single-slot embedded cPCI 3U controller for use with Marvintest’s GX7300 PXI chassis. The GX7936 features a 2.1 GHz i7 Quad Core processor. When combined with the embedded storage peripherals of the GX7300 Series chassis, it is the ideal solution for an integrated, high performance PXI chassis / controller configuration.


The GX7936 controller supports multiple peripherals and I/O interfaces through either the controller’s front panel or the rear I/O panel of the GX7300 Series chassis. Connection to the DVD-RW drive and hard drive is via the controller’s internal I/O interface. The controller’s front panel I/O is provided with a factory default configuration and is fully functional in any PXI or cPCI chassis.

The GX7936 embedded system controller is compliant with the CompactPCI Core Specfication PICMG 2.0 Rev. 3.0 and is compatible with the PXI-1 Rev. 2.2 specification.


  • Automatic Test Equipment (ATE)
  • Data Acquisition
  • Process Control
  • Production Test
  • Industrial Systems
  • Portable Systems
