NOT RECOMMENDED FOR NEW DESIGNSPlease contact the factory for availability and alternate product offerings.Features

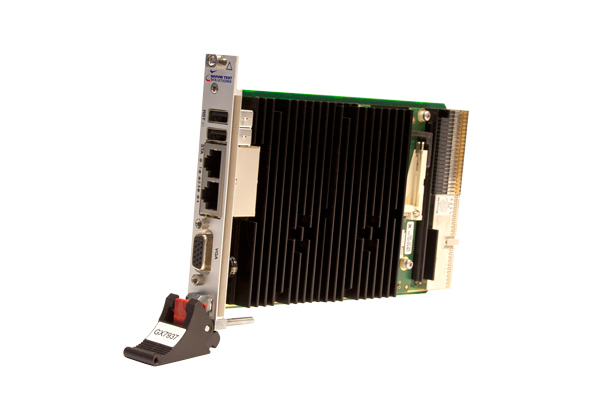

The GX7937 is a single-slot embedded cPCI 3U controller for use with Marvin Test Solutions' GX7300 PXI chassis. The GX7937 features a 2.3 GHz i7 Quad Core processor. When combined with the embedded storage peripherals of the GX7300 Series chassis, it is the ideal solution for an integrated, high performance PXI chassis / controller configuration.
Configuration
The GX7937 controller supports multiple peripherals and I/O interfaces through either the controller’s front panel or the rear I/O panel of the GX7300 Series chassis. Connection to the DVD-RW drive and hard drive is via the controller’s internal I/O interface. The controller’s front panel I/O is provided with a factory default configuration and is fully functional in any PXI or cPCI chassis.
The GX7937 embedded system controller is compliant with the CompactPCI Core Specfication PICMG 2.0 Rev. 3.0 and is compatible with the PXI-1 Rev. 2.2 specification.
Applications
- Automatic Test Equipment (ATE)
- Data Acquisition
- Process Control
- Production Test
- Industrial Systems
- Portable Systems
GX7937 Specifications
| Processor and Memory |
|---|
| CPU | Intel® Core® i i7-3615QE, Quad Core 2.3 GHz Processor
6 MB cache
1066 / 1333 / 1600 MHz memory bus |
| Main Memory | 4 GB soldered DDR3 DRAM memory |
| Other Memory | 64 Mbits of boot Flash
2 kbits EEROM for factory settings |
| External Interfaces |
|---|
| CompactPCI Bus Interface | Compliant with CompactPCI specification PICMG 2.0 R3.0
System master operation
32-bit / 33 MHz master interface
V(I/O): 3.3 V (+5 V tolerant) |
| Peripheral I/O Ports |
| USB Interface | Two USB 2.0 ports via Series A connectors on the front panel
One USB 2.0 port on rear panel of chassis |
| Ethernet Interface | Two 10/100/1000 MB/s Ethernet interface ports on the front panel
One 10/100/1000 MB/s Ethernet interface port on rear panel of the chassis |
| Graphics Interface |
|---|
| VGA Interface | Maximum resolution: 2048 x 1536 pixels
15-pin D-sub VGA connector on front panel |
| Mass Storage |
|---|
| CompactFlash | Connected via USB |
| MicroSD Card | Connected via USB |
| Serial ATA (SATA) | Accessible via rear panel connection on the chassis (option)
Transfer rates of 3 or 6 Gb/s, RAID level 0/1/5/10 support |
| Supply Voltage / Power Consumption |
|---|
| +5 V | 9.8 A (typ) |
| +3.3 V | 1.4 A |
| +12 V | 10 mA |
| Environmental and Mechanical |
|---|
| Dimensions | 3U, 4HP, CompactPCI/PXI compliant form factor |
| Weight | 430 g |
| Operating Temperature | 0 °C to +60 °C |
| Storage Temperature | -40 °C to +85 °C |
| Humidity (Operating & Storage) | 95% RH max, non-condensing |
| Shock | 50 m/s2, 30 ms |
| Vibration (Sinusoidal) | 7.9 m/s2 5 to 150 Hz |
Note: Specifications are subject to change without notice.
