OVERVIEW

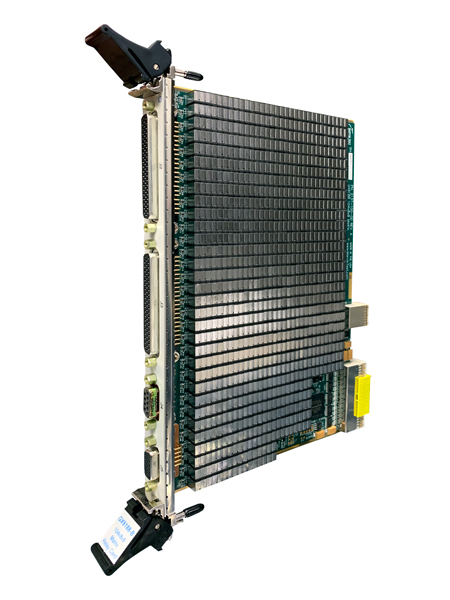

The GX6188 is a 6U PXI, high density matrix, GENASYS architecture switching card. The card provides the user with the ability to connect and interface resources to multiple UUT connections. The board consists of two matrices - a 104x8 and a 8x8 matrix. The GX6188 can connect to 104 UUT switching points, eight external resources and an eight channel global bus via front panel connectors. Multiple GX6188 cards can be connected using the global bus. Like other
GENASYS switch cards, the GX6188 features an integral, 3-dimensional switching architecture which provides the flexibility to connect test system resources to multiple UUT connections as well as supporting an expansion bus connection without sacrificing I/O matrix connections when building multiple switch card configurations.
DESCRIPTION
The GX6188 matrix card consists of a 104x8 matrix and a 8x8 matrix. Any of the 104 UUT connections can be routed to the eight resource connections via the internal 8-wire global bus and the 8x8 matrix. In addition, each of the eight global bus lines can be connected to a grounded bleed resistor or the built-in-test (BIT) voltage source. Multiple cards can be connected to create larger switch matrices by interconnecting to the 8-wire global bus which is available on the front panel of the switch card. There are also 14 general purpose digital I/O signals which are accessed via the card's I/O connectors and can be used for cable ID, external reset of matrix relays, or for creation of a PXI bus interrupt.
SOFTWARE
The board is supplied with the GXSW library, a software package that includes a virtual instrument panel, and a Windows 32/64-bit DLL driver library and documentation. The virtual panel can be used to interactively program and control the instrument from a window that displays the instrument’s current settings and status. In addition, interface files are provided to support access to programming tools and languages such as
ATEasy®, LabVIEW™, LabVIEW/Real-Time, C/C++, Microsoft Visual Basic®, Delphi, and Pascal. An online help file and PDF User's Guide provides documentation that includes instructions for installing, using and programming the board. A separate software package -
GtLinux - provides support for Linux 32/64 operating systems.
Applications
- GENASYS switching subsystem
- Automated test system applications
- High I/O count, mixed-signal test applications
- Industrial control
- Data Acquisition Systems
- Process Control Systems
GX6188 Series Specifications
| GX6188 Switching Specifications |
|---|
| Configuration | (4) 26 x 8 matrices and (1) 8 x 8 matrix |
| Inputs | 8 via external resource or global bus connections |
| Internal Global Bus Configuration | 8-wire, accessible via 104x8 & 8x8 matrices and external connector |
| Global Bus Resources | 2.2 KΩ grounded bleed resistor
BIT voltage source (100KΩ pullup to 3.3V) |
| UUT Inputs / Outputs | 104 |
| Relay Specifications | Max AC pk or DC voltage 170 V
Max DC or AC pk carry current: 1A
Max DC or AC pk switching current: 0.5A
Max contact rating: 10 W |
| Signal Bandwidth | >10 MHz, Input to Output (resource input to switch card output) |
| General Purpose I/O |
|---|
| Inputs / Outputs | 14, static read / write digital I/O signals |
| Logic Levels | LVTTL compatible |
| Functions | Cable ID, open relays via external input, generate PXI bus interrupt via external input |
| I/O Connections |
|---|
| Output / UUT | (2) 62 pin D-sub F connectors |
| Input / Resource | 15 pin D-sub F connector |
| Global Bus | 9 pin D-sub F connector |
| Environmental, Phsyical and Compliance |
|---|
| Operating | GX6188: 0°C to +50°C
GX6188-M: 0°C to +85°C |
| Storage | GX6188: -20°C to +85°C
GX6188-M: -51°C to +85°C |
| Relative Humidity (operating) | GX6188: 5% to 85%, temperature range 0°C to 60°C
GX6188-M: 5% to 95%, temperature range 0°C to 60°C
GX6188, GX6188-M: 5% to 60% for operating temperatures above 60°C |
| Altitude (operating) | 4600 meters (max) |
| Form Factor | 6U, single slot |
| Weight | 2.2 lbs |
| CE Compliance | EN61010-1 (pending)
EN61326 (pending) |
Note: Specifications are subject to change without notice.
