Writing the Procedure Code

You are now ready to start writing the code. To average a group of numbers, you need to sum the elements of the array (ad) and then divide the total by the number of elements (lSize).

 To write the procedure code:

1.      Type the following statements in the procedure code area:

! handle optional parameter

! if -1 or not passed then use the array size

if lSize=-1

! calc num of elements

lSize=(sizeof ad)/sizeof double)

endif



if lSize<=0

return 0

endif



! sum all elements to d

for i=0 to lSize-1 do

d=d+ad[i]

next

! calc average

d=d/lSize

return d

The first two statements determines how many array elements to calculate the average (lSize), followed by a For-Next loop starting with 0 and ending with the last element you want to average (lSize-1). d is used to store the sum of all elements. The last statement returns the average (total divided by number of elements) to the caller.

2.      To verify the code was typed correctly and that you do not have syntax errors, click on the Checkit! on the Build/Run toolbar. If no errors are found, the status bar, shown at the bottom of the main window, should display No Errors. Otherwise, the cursor will move to the place where the error occurred and the status bar will show a description of the compiler error, in this case, fix the error and repeat this until No errors displays in the status bar.

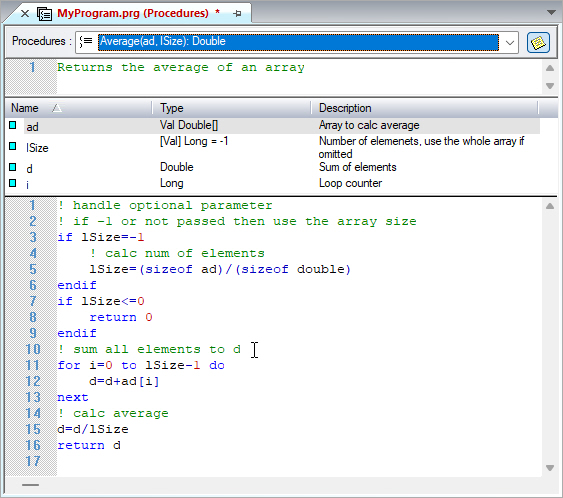

 The Procedure View should now look as illustrated in the figure below:
