Importing DLL Header file

Declaring procedures, types and constants manually can take considerable time. ATEasy can make use of the C header file supplied with DLL to import procedures, types (struct, enum or typedef) and constants. C data types that are specified in a header file can have various interpretations. For example the C data type ‘unsigned int *’ when specified as a procedure parameter can be interpreted as a parameter that returns a DWord (Var DWord) or array of DWord (Var DWord []) or accept array of DWord (val DWord []). During the Import process ATEasy will ask the user to resolve Ambiguous data types by presenting the possible options. Selecting the right option is essential.

In the following example we will be using the Gx6138.h as an example for importing a C header file. The file was extracted from GXSW.h that is part of the GXSW package that can be installed from Marvin Test Solutions web site. The Gx6138.h file is installed by ATEasy in the Examples folder.

To Import C header file:

1.      Create a new driver by right click on the system from the workspace window and select New Driver

2.      Under libraries insert GXSW.DLL as explained earlier in this chapter.

3.      Right click on GXSW DLL under procedures and select Import C Header File (.h)…

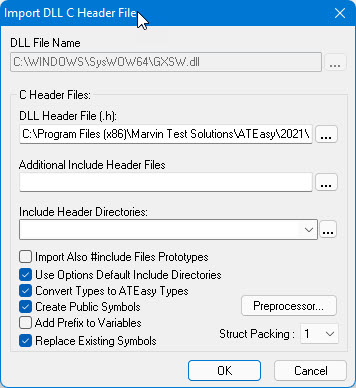

4.      Select the Gx6138.h from the ATEasy Examples folder and check the following options as shown here:



The Additional Header Files (.h): is used when you need to specify additional header files needed to import (separated by semicolons). The Include Header Directories is used to specify include directories that are needed when trying to resolve data types defined in other header files. The preprocessor button displays a header file that contains common definition and always parsed before the actual header file. This file can be edited to add or change types. The other options are documented in the On-Line help.

5.      Click OK to import the header file.

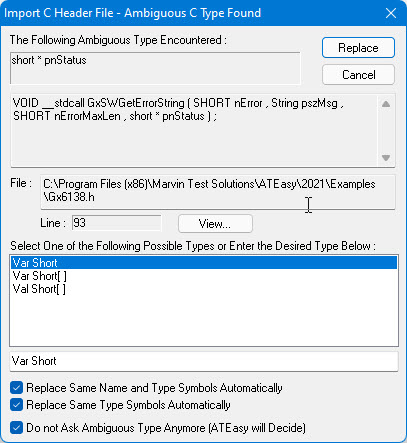

6.      ATEasy will prompt with the following Ambiguous C Type dialog:



This dialog will be displayed for each C data type that ATEasy cannot find exact match. In this case the PSHORT data type is offered with 3 options Var Short and two array types. Since the status is returned from the procedure as a single number and not an array select the Var Short. To accelerate the migration, check Replace Same name/same type and Don’t ask check boxes as shown here and click Replace.

The newly created GXSW library will now be created and will show similar procedures to the one declared manually earlier in this chapter. You can remove the new driver created from the system.
