Using Form Design View and Tools

Form Design Tools are used to organize multiple elements on your form. There are three steps in using them.

1. Make your selection of form elements.

Using the Pointer tool Pointer from the Form Controls Toolbar, drag in the form area to draw a selection box around the controls you want to select. Controls partially outside the selection box are not selected.

2. If the dominant control ATEasy has selected is not the one you want, select the dominant control.

3. Apply the Form Design Tool of your choice. The Form Design Tools are on the Form Design Toolbar.

If the Form Design Toolbar is not showing, it can be made visible by selecting the Toolbars Toolbars item from the View menu, and clicking on the Form Design checkbox.

Toolbar Menu

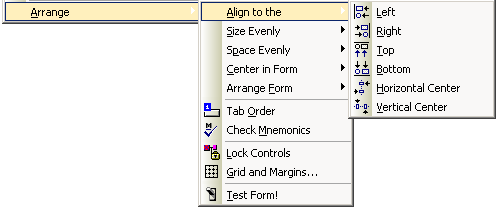

Alternatively, the functions represented by icons in the Form Design toolbar above are also accessible from the Arrange menu under the Edit menu. There, the functions are grouped by type:

Arrange Menu

See Also:

Forms Design Reference
