Structures are data storage objects that contain one or more fields (or elements). A structure can contain fields of different data types. For more information on structures, see Overview of Structures.

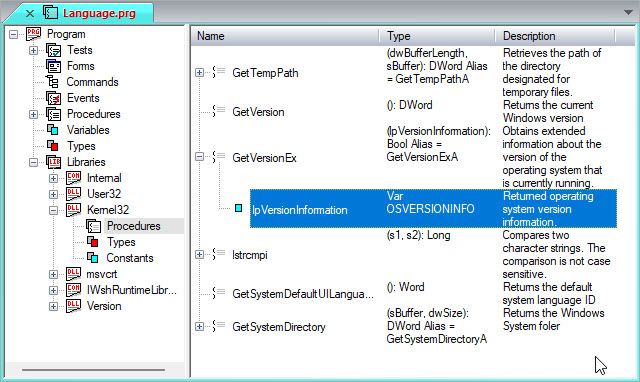

The example below calls the GetVersionEx function, which retrieves extended information about the version of the operating system that is currently running. In the module from which the sample code was drawn, GetVersionEx was exported from the Windows API's Kernel32.dll and inserted under the program module's Libraries submodule as shown below.
The sample code below, which uses a fixed size string, shows how to pass a structure.
verinfo.dwOSVersionInfoSize=sizeof verinfo
if not GetVersionEx(verinfo)
TestStatus=FAIL
endif
if verinfo.dwMajorVersion<3
TestStatus=FAIL
endif
s=verinfo.szCSDVersion
if len(verinfo)<1
TestStatus=FAIL
endif
