The String Test Type

In a String test, the value of the TestResult variable is compared to a string. This type of test is usually used for communication testing, in which the data received and stored in the TestResult internal variable must be equal to the string specified in the test. If TestResult is equal to the string's value, then TestStatus is Pass.

Defining a String Test's Properties

To define a String test's properties:

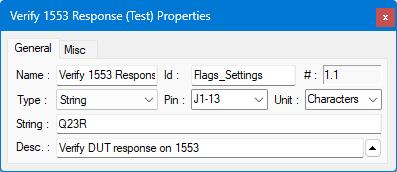

1.      Select the test and click (Properties) on the ATEasy toolbar. The Test Properties dialog appears:

2.      In the String field, enter the string to which TestResult is to be compared.

3.      Make other selections and entries as needed in the dialog box. For descriptions of the common test properties (name, ID, etc.), see Test Properties Window.

4.      Click the Windows Close button in the upper-right corner of the dialog box to close it.

String Test Log Output

Here is an example of String test log output in text format:

Here is an example of the same String test log output in HTML format:

Calculating TestStatus in a String Test

The following code simulates the way ATEasy calculates TestStatus in a String test:

if TestStatus=NONE and VarType(TestResult) <> vtEmpty then

if TestResult = Test.String

TestStatus=PASS

else

TestStatus=FAIL

endif

endif

! The status now is in TestStatus into which ATEasy

! writes the status value.

See Also

String Property (ATest), TestResult Variable, TestStatus Variable
