GX1164 Calibration

This section describes the requirements for calibrating Marvin Test Solutions GX1164 Programmable Resistor PXI Board.

Overview

Supported Devices: GX1164.

Program: GX1164.

Recommended Calibration Interval: 2 Years.

Required Hardware:

1.      GX1164.

2.      GX6377 Switch Matrix.

3.      6 ½ digit and above DMM.

4.      Calibration Cable, GT96112.

Required Software:

1.      ATEasy run-time (see the ReadMe.txt for supported versions).

2.      GxPRes v2.3.0 or newer.

3.      CalEasy v1.4.7 or newer.

4.      Standards driver manufacturer's software as specified below.

Required Standards and Capabilities:

1.      DMM  – 6½ Digit DMM and above with VDC and 4-Wire measurement functions.
Provided instrument drivers: Agilent 3458, Keithley 200x (2002).

2.      MATRIX – Switch matrix with at least 64 x 2 connections.
Provided instruments drivers: Marvin Test Solutions GX6377.

Note: See Instrument Standards DLL Files section for more information about the Standard Driver software requirements and setup.

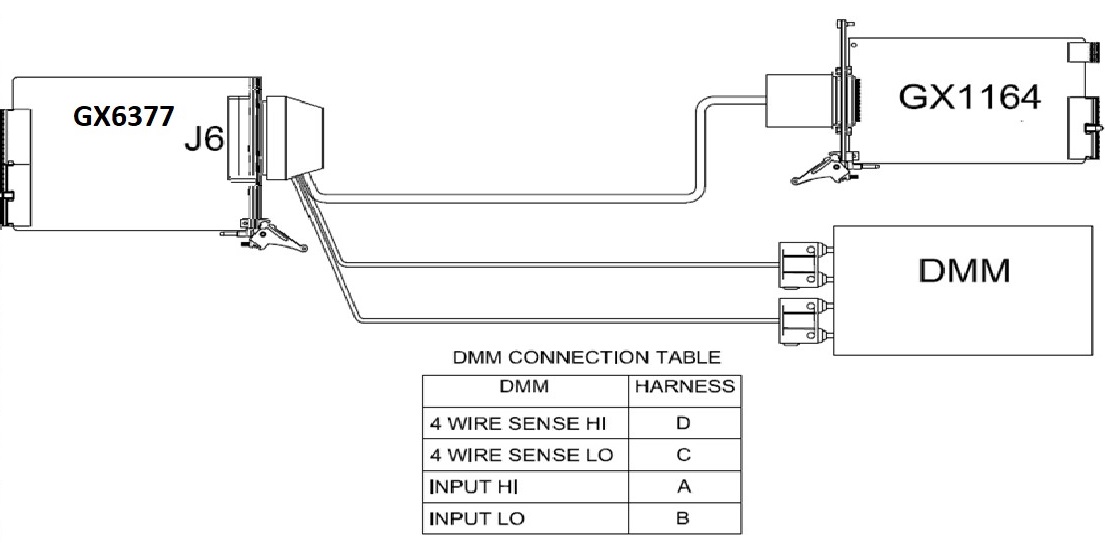

The following diagram shows the calibration harness connections using GX6377 to calibrate the GX1164 board.

Calibration Harness Connections to GX1164 board using GX6377

Calibration Procedure

1.      Start CalEasy.exe executable.

2.      Select standards instruments for Matrix and DMM.

3.      Click Start.

4.      Select the verification and calibration program mode: Verify, Verify and if Passed, Update Calibration Date, Verify and Calibrate If Required or Calibrate.

5.      Run Calibration Program.

6.      Follow the prompted harness connection messages.
