GX3104 Calibration

This section describes the requirements for calibrating Marvin Test Solutions GX3104 4-Channel 20V, 250mA per Channel SMU PXI 3U card.

Overview

Supported Devices: GX3104.

Program: GX3104.

Recommended Calibration Interval: 1 Year.

Required Hardware using switch matrix:

1.      GX3104.

2.      GX6377 Switch Matrix.

3.      7 ½ digit DMM (minimum requirement).

4.      Calibration Cable, GX3104-CALCABLE.

Required Hardware using TS-900e-5G Calibration Adapter:

1.      GX3104.

2.      Marvin Test Solutions TS-900e-5G Calibration Adapter.

3.      7 ½ digit DMM (minimum requirement).

4.      5 24-inch Patch Cord with Banana Plugs on both ends (if using TS-900e-5G Calibration Adapter).

Required Software:

1.      ATEasy run-time (see the ReadMe.txt for supported versions).

2.      GxPio v4.1.2.0 or newer for Gx5733 (if using TS-900e-5G Calibration Adapter).

3.      GxSmu v2.0.4.0 or newer for Gx3104 / Gx3116e.

4.       CalEasy v1.5.4.1 or newer.

5.      Standards driver manufacturer's software as specified below.

Required Standards and Capabilities:

1.      DMM  – 7½ DMM (minimum requirement) with VDC and IDC measurement functions.
Provided instrument drivers: Agilent 3458, Keithley 2002.

2.      MATRIX

Note: See Instrument Standards DLL Files section for more information about the Standard Driver software requirements and setup.

Calibration Harness Connections using GX3104-CALCABLE and Switch Matrix

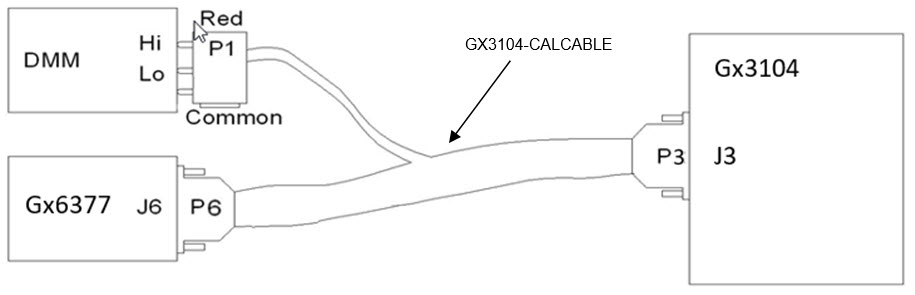

The following diagram shows the calibration harness connections in order to calibrate the GX3104 board.

Calibration harness connections in Order to Calibrate the GX3104 Board

Calibration Procedure and Switch Matrix

1.      Start CalEasy.exe executable.

2.      Select standards instruments for Matrix and DMM.

3.      Click Start.

4.      Select the verification and calibration program mode: Verify, Verify and if Passed, Update Calibration Date, Verify and Calibrate If Required or Calibrate.

5.      Run Program.

6.      Follow the prompted harness connection messages.

Calibrating TS-9XXe-5G systems with in-system Calibration Load Board

In-system Calibration Adapter Configuration

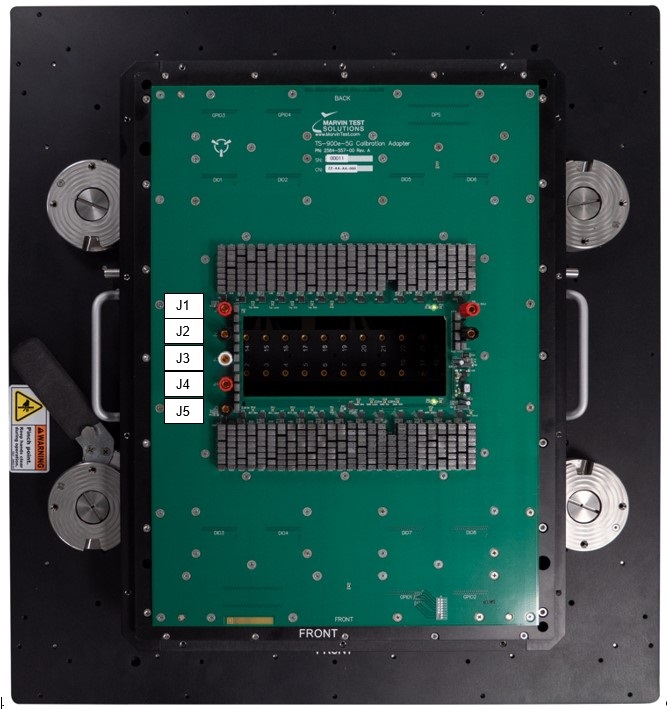

The figure below displays the TS-900e-5G Calibration Adapter for the TS-9XXe-5G. The TS-9XXe-5G’s system TS-900e-5G Calibration Adapter is a PCB assembly which mounts on the system pogo pin receiver interface. The adapter provides access to all pogo pin blocks via .1 x.1 double row headers, facilitating the creation of connections between all Marvin Test Solutions installed PXI hardware and the external measurement and reference standards to be used in the calibration or verification process:

Details TS-900e-5G Calibration Adapter connections

Connector label
Description
J1
External DMM Voltage input High.
J2
External DMM Voltage input Low.
J3
External DMM Voltage input Current.
J4
Sense High.
J5
Sense Low.


Calibration Procedure using TS-900e-5G Calibration Adapter

1.      Connect red banana plug between J1 Calibration Adapter to DMM input Hi.

2.      Connect black banana plug between J2 Calibration Adapter to DMM input Lo.

3.      Connect red banana plug between J3 Calibration Adapter to DMM input Amps.

4.      Start CalEasy.exe executable.

5.      Select standards instruments for Matrix and DMM.

6.      Click Start.

7.      Select the verification and calibration program mode: Verify, Verify and if Passed, Update Calibration Date, Verify and Calibrate If Required or Calibrate.

8.      Run Program.
