GX3116e Calibration

This section describes the requirements for calibrating Marvin Test Solutions GX3116e 16-Channel DUT Power Supply PXIe Board 3U card.

Overview

Supported Devices: GX3116e.

Program: GX3116.

Recommended Calibration Interval: 1 Year.

Required Hardware:

1.      GX3116e.

2.      GX6384-1/2/3 Switch Matrix.

3.      7 ½ digit DMM (minimum requirement).

4.      Calibration Cable, part number CalEasy-GX3116.

5.      One Red 12.0" Banana to Banana Plug, Single, Stackable Patch Cord (provided by the user).

Required Hardware using TS-900e-5G Calibration Adapter:

1.      GX3116e.

2.      Marvin Test Solutions TS-900e-5G Calibration Adapter.

3.      7 ½ digit DMM (minimum requirement).

4.      5 24-inch Patch Cord with Banana Plugs on both ends (if using TS-900e-5G Calibration Adapter).

Required Software:

1.      ATEasy run-time (see the ReadMe.txt for supported versions).

2.      GxPio v4.1.2.0 or newer for Gx5733 (if using TS-900e-5G Calibration Adapter).

3.      GxSmu v2.0.4.0 or newer for Gx3104 / Gx3116e.

4.      CalEasy v1.5.4.1 or newer.

5.      Standards driver manufacturer's software as specified below.

Required Standards and Capabilities:

1.      DMM  – 7½ DMM (minimum requirement) with VDC and IDC measurement functions.
Provided instrument drivers: Agilent 3458, Keithley 2002.

2.      MATRIX:

Note: See Instrument Standards DLL Files section for more information about the Standard Driver software requirements and setup.

Calibration Harness Connections using GX3116-CALCABLE

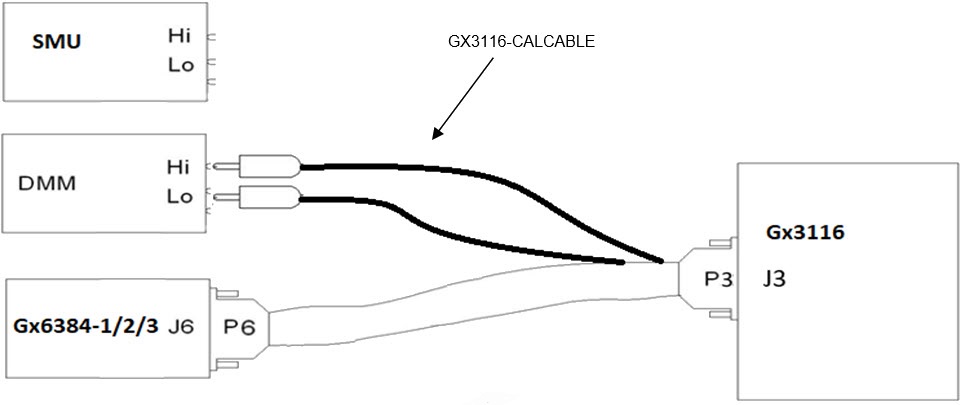

The following diagram shows the calibration harness connections in order to calibrate the GX3116e board.

Calibration harness connections to calibrate the GX3116 board





Calibration Procedure using Switch Matrix

1.      Start CalEasy.exe executable.

2.      Select standards instruments for Matrix and DMM.

3.      Click Start.

4.      Select the verification and calibration program mode: Verify, Verify and if Passed, Update Calibration Date, Verify and Calibrate If Required or Calibrate.

5.      Run Calibration Program.

6.      Follow the prompted harness connection messages.

Calibrating TS-9XXe-5G systems with in-system Calibration Load Board

In-system Calibration Adapter Configuration

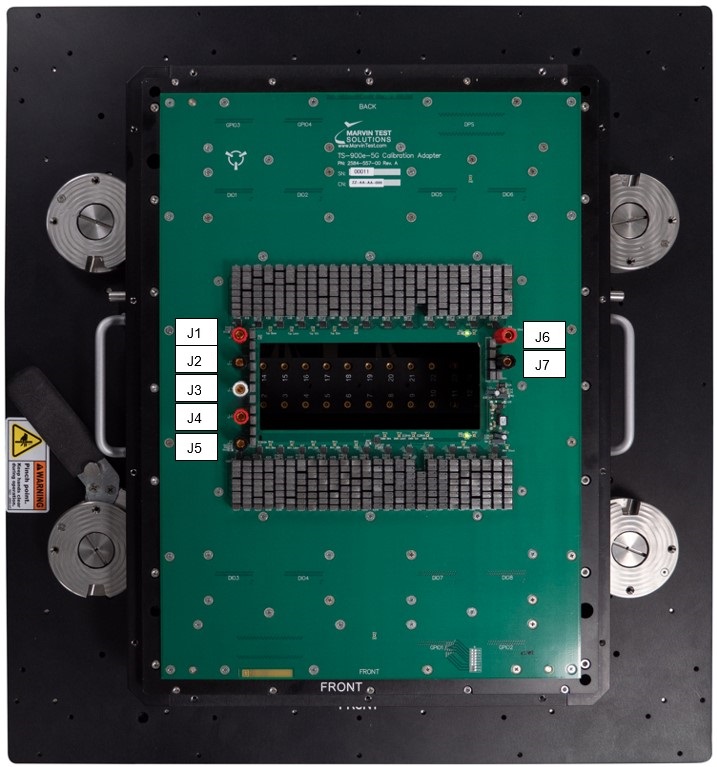

The figure below displays the TS-900e-5G Calibration Adapter for the TS-9XXe-5G. The TS-9XXe-5G’s system TS-900e-5G Calibration Adapter is a PCB assembly which mounts on the system pogo pin receiver interface. The adapter provides access to all pogo pin blocks via .1 x.1 double row headers, facilitating the creation of connections between all Marvin Test Solutions installed PXI hardware and the extremal measurement and reference standards to be used in the calibration or verification process:

GX3116e-Details TS-900e-5G Calibration Adapter connections

Connector label
Description
J1
External DMM Voltage input High.
J2
External DMM Voltage input Low.
J3
External DMM Voltage input Current.
J4
Sense High – internally shorted to J1 (no connections required).
J5
Sense Low – internally shorted to J2 (no connections required).
J6
External SMU input High.
J7
External SMU input Low.


Calibration Procedure using TS-900e-5G Calibration Adapter

1.      Connect red banana plug between J1 Calibration Adapter to DMM input Hi.

2.      Connect black banana plug between J2 Calibration Adapter to DMM input Lo.

3.      Connect red banana plug between J3 Calibration Adapter to DMM input Amps.

4.      Connect red banana plug between J6 Calibration Adapter to SMU input Hi.

5.      Start CalEasy.exe executable.

6.      Select standards instruments for Matrix, and DMM.

7.      Click Start.

8.      Select the verification and calibration program mode: Verify, Verify and if Passed, Update Calibration Date, Verify and Calibrate If Required or Calibrate.

9.      Run Program.

Approximate Test Time
