GX3348 Series Calibration

This section describes the requirements for calibrating Marvin Test Solutions GX3348 and GX3348-64 / GX3364 Multi-Channel Analog I/O PXI 6U cards.

Overview

Supported Devices: GX3348 (48 channels), GX3348-64 / GX3364 (64 channels).

Program: GX3348.

Recommended Calibration Interval: 1 Year.

Required Hardware:

1.      GX3348 or GX3348-64 / GX3364.

2.      GX6384 switch matrix.

3.      6 ½ digit DMM (minimum requirement).

4.      Calibration Cable, GT96109.

5.      1K ohm, 0.5-watt, 1% resistor.

6.      Dual banana plug, stackable; Pomona 4892-0 or equivalent.

Required Software:

1.      ATEasy run-time (see the ReadMe.txt for supported versions).

2.      GxPdo v3.2.3 or newer..

3.      CalEasy v1.4.6 or newer.

4.      Standards driver manufacturer's software as specified below.

Required Standards and Capabilities:

1.      DMM  – 6½ DMM (minimum requirement) with VDC and IDC measurement functions.
Provided instrument drivers: Agilent 3458, Keithley 200x (2001, 2002), Marvin Test Solutions GX2065, Signametrics SMX204x (SM2040, SM2042, SM2044) or SM206x.

2.      MATRIX – Switch matrix with at least 64 x 2 connections.
Provided instruments drivers: Marvin Test Solutions GX6384.

Note: See Instrument Standards DLL Files section for more information about the Standard Driver software requirements and setup.



Calibration Harness Connections using GT96109

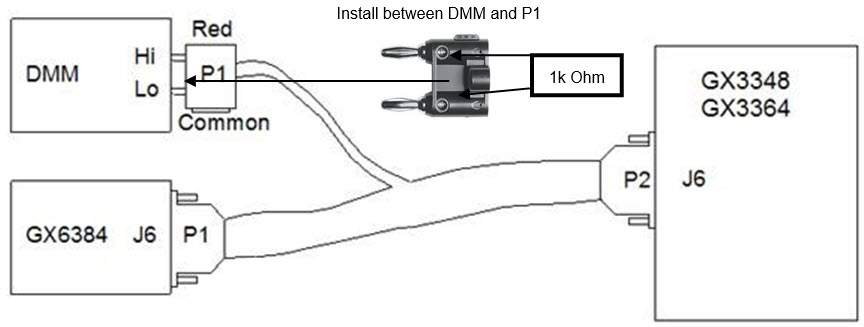

The following diagram shows the calibration harness connections in order to calibrate the GX3348 board. Calibration / verification of the instrument requires the use of a 1K ohm load resistor (user supplied). Using a dual stackable banana plug, install the load resistor in the banana plug and secure with the banana plug’s set screws. Plug this assembly into the DMM’s Hi and Lo terminals and plug the P1 banana plug into the stackable banana plug.

Calibration Harness Connections in order to Calibrate the GX3348 Board

Calibration Procedure

1.      Start CalEasy.exe executable.

2.      Select standards instruments for Matrix and DMM.

3.      Click Start.

4.      Select the verification and calibration program mode: Verify, Verify and if Passed, Update Calibration Date, Verify and Calibrate If Required or Calibrate.

5.      Run Calibration Program.

6.      Follow the prompted harness connection messages.

Approximate Test Time
