GX3748 Calibration

This section describes the requirements for calibrating Marvin Test Solutions’ GX3748 Threshold Comparator PXI 3U card.

Overview

Supported Devices: GX3748.

Program: GX3748.

Recommended Calibration Interval: 1 Year.

Required Hardware:

1.      GX3748.

2.      6 ½ digit DMM (minimum requirement).

3.      Calibration cable kit, TBD.

Required Software:

1.      ATEasy run-time (see the ReadMe.txt for supported versions).

2.      GxFpga v2.3.4 or newer.

3.      CalEasy v1.4.4 or newer.

4.      Standards driver manufacturer's software as specified below.

Required Standards and Capabilities:

1.      DMM  – 6½ digit DMM (minimum requirement) with VDC and IDC measurement functions.
Provided instrument drivers: Agilent 3458, Keithley 200x (2001, 2002), Marvin Test Solutions GX2065, Signametrics SMX204x (SM2040, SM2042, SM2044) or SM206x.

Note: See Instrument Standards DLL Files section for more information about the Standard Driver software requirements and setup.

Calibration Harness Connections

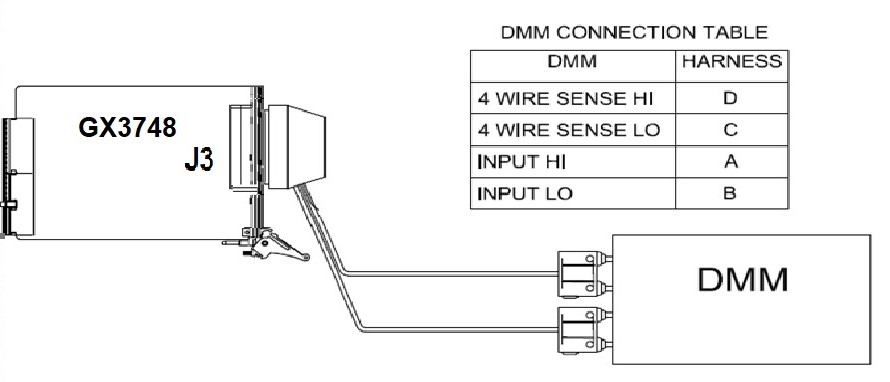

The following diagram shows the calibration harness connections in order to calibrate the Gx3748 board.

Calibration Harness Connections in Order to Calibrate the Gx3748 Board

Calibration Procedure

1.      Start CalEasy.exe executable.

2.      Select standards instruments for Matrix and DMM.

3.      Click Start.

4.      Select the required mode the verification and calibration program should run: Verify, Verify and if Passed, Update Calibration Date, Verify and Calibrate If Required or Calibrate.

5.      Run Calibration Program.

6.      Follow the prompted harness connection messages.

Approximate Test Time
