DIO Connectors

The GC5050 has 4 connectors. All the connectors are available on the instrument’s front panel.

The GC5050 has the following connectors:

Connector Name

Control signals

Connector Description

J1 I/O

UUT I/O signals

68 Pin VHD Connector

J2 Timing

UUT Timing Signals

68 Pin VHD Connector

J5 I/O

Timing Signals Daisy chained to additional slaves.

20 Pin High Density Connector

J7 Timing

UUT Control Signals. Do not use on Slave.

14 Pin VHD Connector.



Connectors J5 (UUT I/O Signals), and J2 (Timing Control Signals) are 68-pin VHD connectors. J7 is 20-pin high-density header that is used to Daisy-chained additional Slave DIOs to achieve a pattern that is wider than 32 channels.

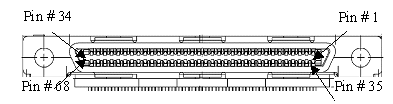

The figure below shows the layout of a 68-Pin VHD connectors used for UUT I/O and timing signals. The 68-pin male end plate connector has a shielded, double pin row receptacle. The connector mates with a UUT cable.

GC5050 68-Pin (VHD) Connector

GC5050 68-Pin (VHD) Connector

J1 I/O Connector (68-Pin to UUT)

The following table defines the GC5050 DIO to UUT I/O signals. This interface uses a 68-pin VHD connector.

Pin

Signal

Type

Pin

Signal

Type

Pin

Signal

Type

Pin

Signal

Type

1

I/O0+

I/O

18

I/O17+

I/O

35

I/O0-

I/O

52

I/O17-

I/O

2

I/O1+

I/O

19

I/O18+

I/O

36

I/O1-

I/O

53

I/O18-

I/O

3

I/O2+

I/O

20

I/O19+

I/O

37

I/O2-

I/O

54

I/O19-

I/O

4

I/O3+

I/O

21

I/O20+

I/O

38

I/O3-

I/O

55

I/O20-

I/O

5

I/O4+

I/O

22

I/O21+

I/O

39

I/O4-

I/O

56

I/O21-

I/O

6

I/O5+

I/O

23

I/O22+

I/O

40

I/O5-

I/O

57

I/O22-

I/O

7

I/O6+

I/O

24

I/O23+

I/O

41

I/O6-

I/O

58

I/O23-

I/O

8

I/O7+

I/O

25

I/O24+

I/O

42

I/O7-

I/O

59

I/O24-

I/O

9

I/O8+

I/O

26

I/O25+

I/O

43

I/O8-

I/O

60

I/O25-

I/O

10

I/O9+

I/O

27

I/O26+

I/O

44

I/O9-

I/O

61

I/O26-

I/O

11

I/O10+

I/O

28

I/O27+

I/O

45

I/O10-

I/O

62

I/O27-

I/O

12

I/O11+

I/O

29

I/O28+

I/O

46

I/O11-

I/O

63

I/O28-

I/O

13

I/O12+

I/O

30

I/O29+

I/O

47

I/O12-

I/O

64

I/O29-

I/O

14

I/O13+

I/O

31

I/O30+

I/O

48

I/O13-

I/O

65

I/O30-

I/O

15

I/O14+

I/O

32

I/O31+

I/O

49

I/O14-

I/O

66

I/O31-

I/O

16

I/O15+

I/O

33

MS

50

I/O15-

I/O

67

MS

17

I/O16+

I/O

34

MS

51

I/O16-

I/O

68

MS

J1 68-Pin UUT I/O Data Connector

Notes for the table:

●     Pin: Pin number

●     I/O: Input or Output

●     P: Power/GND

●     IO0 – IO31: Differentially Coupled Data Lines. Non-differential I/O Modules, all IOx-(negated) lines are grounded.

●     MS: I/O Module specific, See the “PCI Bus I/O Modules and Interfaces User’s Guide” for complete pin listings for I/O modules.
