This section describes the DIO I/O and the Timing connectors and cables (see the figure below).
When a GC5050 is configured as Master all connectors can be used. When it configured as a Slave, the Timing connector should not be used because some of its signals are not connected In a DIO domain only the Master timing signal are connected and valid.

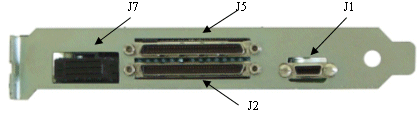

GC5050 Panel Connectors for UUT Cables
