Depending on what you ordered, the shipping kit may contain the following items:
This includes:
● Input-Output Module GTxx-DIO board, with installed memory in groups of three SIMMs (see memory options listed in the next section), and one 50 pin flat cable with one installed connector and one uninstalled connector
.

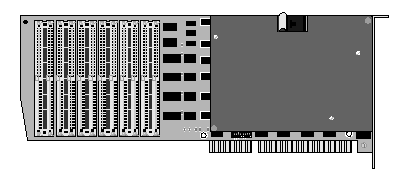

Master Circuit Board with Timing Control Module
● GTxx-TIM Timing Control Module (installed on I/O module) including one or two 20-pin flat cables with a number of pre-installed connectors depending upon the number of boards in the system. For example, if you have four boards, order one flat cable with five installed connectors. This flat cable may be used to daisy chain up to four boards. Two cables may be used to connect up to eight boards: one Master and seven Slaves.
● 1.44MB (3.5 inch) floppy disk containing DIOEasy software and GT-DIO driver.
● GT-DIO / DIOEasy User’s Guide.
This includes:
● Input-Output Module GTxx-DIO board with installed memory in groups of three SIMMs (see memory options listed below), and one 50 pin flat cable with one installed connector.
Memory options for the GTxx-DIO circuit boards are as follows:
Board |
Memory Option |
GT-16K-15 |
16K Memory for up to 40MHz Applications |
GT-16K-12 |
16K Memory for up to 50MHz Applications |
GT-64K-30 |
64K Memory for up to 25MHz Applications |
GT-64K-20 |
64K Memory for up to 35MHz Applications |
GT-256K-25 |
256K Memory for up to 35MHz Applications |
GT-256K-30 |
256K Memory for up to 25MHz Applications |
GT-256K-12 |
256K Memory for up to 50 MHz Applications |
GT-256K-10 |
256K Memory for up to 65MHz Applications |
Other memory options may be available when ordering. Memory is always supplied in groups of three SIMMs. Up to four groups or banks (12 SIMMs) may be installed on each board to provide up to 1M of steps per pin.
