The GX5280 has 4 connectors. All the connectors are available on the instrument’s front panel.
The GX5280 has the following connectors:
J1 I/O TTL Signals |
Programmable TTL Level I/O Data Connector Signals. |
J2 I/O LVDS Signals |
LVDS I/O Data Signals. |
J3 Timing |
Timing Signals (do not use on Slave). |
J4 Control |
User Control Connector Signals (do not use on Slave). |
Note: All connectors J1-J4 are 68-pin VHD connectors.

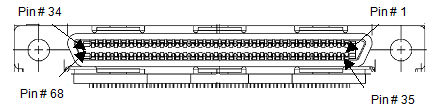

The figure below shows the layout of 68-Pin VHD connectors. The 68-pin male end plate connector has a shielded, double pin row receptacle. The connector mates with a UUT cable.
GX5280 68-Pin (VHD) Connector
