GX5290e Front Panel Connectors for UUT Cables

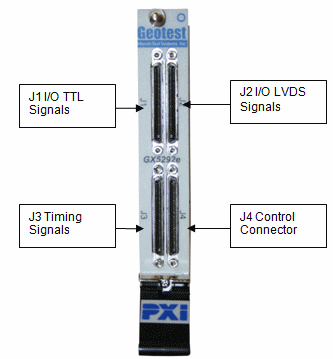

The GX5290e has 4 connectors. All the connectors are available on the instrument’s front panel. The GX5290e has the following connectors:
J1 I/O TTL Signals |
Programmable TTL Level I/O Data Connector Signals. |
J2 I/O LVDS Signals |
LVDS I/O Data Signals (not supported by the Gx5291). |
J3 Timing |
Timing Signals (do not use on Slave). |
J4 Control |
User Control Connector Signals (do not use on Slave). |
Note: All connectors J1-J4 are 68-pin VHD connectors.
