This section describes the DIO I/O and the Timing connectors and cables (see the figure below).
When a GX5290/GX5290e is configured as a Master, all connectors can be used. When configured as a Slave, the J3 Timing and J4 Control connectors should not be used.

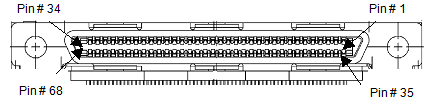

The figure below shows the layout of 68-Pin VHD connectors. The 68-pin male end connector has a shielded, double pin row receptacle. The connector mates with a UUT cable.
GX5290-GX5290e 68-Pin (VHD) Connector
