GX5295 Front Panel Connectors

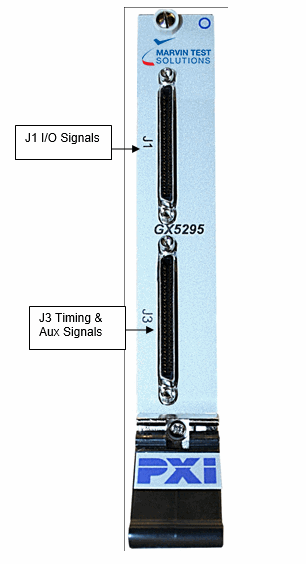

The GX5295 has 2 connectors. All the connectors are available on the instrument’s front panel. The GX5295 has the following connectors:
J1 I/O Signals - 68-pin VHD |
Programmable I/O Levels Data Connector Signals. |
J3 Timing - 68-pin VHD |
Timing & Aux Signals (do not use timing signals on Slave boards). |
