This section describes the DIO I/O and the Timing connectors and cables (see Figure A-1).
When a GX5295 is configured as a Master, all connectors can be used. When configured as a Slave, J3 signals associated with triggering and clocking should not be used. The aux channels are available for use

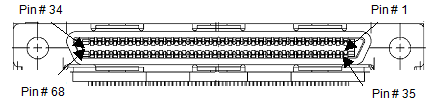

The figure below shows the layout of 68-Pin VHD connectors. The 68-pin male end connector has a shielded, double pin row receptacle. The connector mates with a UUT cable.
_Connector.gif)
GX5295 68-Pin (VHD) Connector
|
Caution - Do not connect a device under test (DUT) to the GX5295’s I/O connections prior to powering up the card. Transient voltages can be present on the card’s I/O connectors at power up which can damage the DUT. Always disconnect the DUT prior to powering up the card. |
