GT5940 PECL TTL Translator Module

GT5940 PECL TTL Translator Module is plug-in module for the GT5150 and GT5900. The GT5940 translate from TTL to PECL levels and vice versa. The GT5940 interfaces to the GT5150 and GT5900 and can be configured as Input or Output in groups of 8 I/O pins.

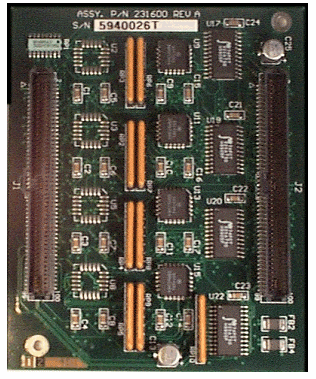

A picture of the GT5940 is displayed in the figure below.

 GT5940 PECL TTL Translator Module Card

GT5940 PECL TTL Translator Module Card

Architecture

Output section of the GT5940 consists on four MC10H351 (TTL to PECL Translator) transforming all 32 channels to PECL levels. Input section of the GT5940 consists on four MC10H350 (PECL to TTL Translators) transforming all 32 channels from PECL levels to standard TTL levels. The module supports configurations of 8, 16, and 32 bi-directional channels. On-board register/MUX logic controls the path of data in both input and output modes of operation and determines the output state after a sequencer HALT.

Programming

The GT5940 Module is controlled by its host, the GT515X or GT25/50 (using GT5900) and provides the following programmable functions:

●     Set the width, number of active channels, as 32, 16, or 8 channels.

●     Global Output Reset

●     Tri-state Output on sequencer HALT

●     Hold Last Value output on sequencer HALT

●     Enable/disable all 8 outputs in a group, four groups in total, in each vector step.

Block Diagram

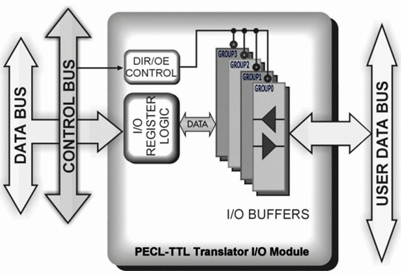

A block diagram of the GT5940 is displayed in the figure below.

GT5940 Block Diagram.

 GT5940 Block Diagram

Function

The GT5940 TTL I/O Module interfaces GT515X DIO boards to external equipment and UUTs that use PECL logic levels.

Control

Width setting - Set the number of active channels, as 32, 16, or 8 channels causing the memory depth to increase/decrease by the same factor. E.g. setting the width to 16 will decrease the number of active channels by two and increase the available number of memory step by two.

Tri State – High impedance outputs can be enabled or disabled in groups of eight during vector execution. The high impedance output state supports the connection of DIO boards to a UUT bus up to 32 bits wide.

Retain Last Value – The output mode can be configured to either retain the last value on vector halt, or switch to high impedance.

UUT-Side I/O Data

The table below describes a GT515X(J4)/GT5900(J10 and J11) interface to UUT data signals when a GT5940 I/O Module is mounted on the motherboard.

Pin

Signal

Type

Pin

Signal

Type

Pin

Signal

Type

1

I/O0+

I/O

24

I/O23+

I/O

47

I/O12-

I/O

2

I/O1+

I/O

25

I/O24+

I/O

48

I/O13-

I/O

3

I/O2+

I/O

26

I/O25+

I/O

49

I/O14-

I/O

4

I/O3+

I/O

27

I/O26+

I/O

50

I/O15-

I/O

5

I/O4+

I/O

28

I/O27+

I/O

51

I/O16-

I/O

6

I/O5+

I/O

29

I/O28+

I/O

52

I/O17-

I/O

7

I/O6+

I/O

30

I/O29+

I/O

53

I/O18-

I/O

8

I/O7+

I/O

31

I/O30+

I/O

54

I/O19-

I/O

9

I/O8+

I/O

32

I/O31+

I/O

55

I/O20-

I/O

10

I/O9+

I/O

33

VTHI0

P

56

I/O21-

I/O

11

I/O10+

I/O

34

VTLO0

P

57

I/O22-

I/O

12

I/O11+

I/O

35

I/O0-

I/O

58

I/O23-

I/O

13

I/O12+

I/O

36

I/O1-

I/O

59

I/O24-

I/O

14

I/O13+

I/O

37

I/O2-

I/O

60

I/O35-

I/O

15

I/O14+

I/O

38

I/O3-

I/O

61

I/O26-

I/O

16

I/O15+

I/O

39

I/O4-

I/O

62

I/O27-

I/O

17

I/O16+

I/O

40

I/O5-

I/O

63

I/O28-

I/O

18

I/O17+

I/O

41

I/O6-

I/O

64

I/O29-

I/O

19

I/O18+

I/O

42

I/O7-

I/O

65

I/O30-

I/O

20

I/O19+

I/O

43

I/O8-

I/O

66

I/O31-

I/O

21

I/O20+

I/O

44

I/O9-

I/O

67

VTHI1

P

22

I/O21+

I/O

45

I/O10-

I/O

68

VTLO1

P

23

I/O22+

I/O

46

I/O11-

I/O







Types: I/O = Input/Output, P = Power or Ground

UUT-Side I/O Connections with a GT59540 Mounted

The table above describes GT515X signals at J4 and Carrier signals at J11. It also describes Carrier signals at J10 when the Carrier input is connected for I/O data.

The UUT interface is set for differential UUTs.

Specifications


Min
Type
Max

I/O Channels Per Module

Configurable: 32, 16 and 8

Type



Output Level

High







Low







Input Level

High







Low







Dynamic Transition Current







Power







Propagation

Delay Output







Delay Input







Output Skew







Temperature Range

Operating







Storage







Size

4.40 x 3.40 Inch

Weight

70g
