GC5960 Low Voltage Differential Signaling (LVDS) Module

GC5960 is a Low Voltage Differential Signaling Transmitter/Receiver plug-in module for the GC5050. The GC5960 uses a differential low voltage swings in order to achieve high data transmission speeds at lower power consumption. The receivers, which respond only to differential voltages, eliminate noise such as common-mode signal reflections as well as emitting less electromagnetic interference (EMI) than other data transmission standards.

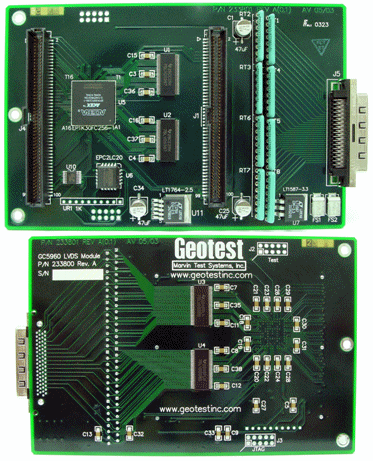

GC5960 Low Voltage Differential Signaling

GC5960  Low Voltage Differential Signaling

Architecture

The GC5960 employs a pair of SN75LVDS386 and a pair of SN75LVDS387 to provide up to 32 bi-directional channels. On-board register/MUX logic controls the path of data in both input and output modes of operation and determines the output state after a sequencer HALT. SIP sockets provide installation of terminators; 100 ohms resistor networks are factory installed (termination is required on the receivers to limit reflections).

The ultimate rate and distance of LVDS data transfer is dependent on the attenuation characteristics of the media and the noise coupling to the environment.

Programming

The GC5960  Module is controlled by its host the GC5050 and provides the following programmable functions:

●     Global Output Reset

●     Tri-state Output on sequencer HALT

●     Hold Last Value output on sequencer HALT

●     Termination Enable/Disable

●     Enable/disable all 8 outputs in a group, four groups in total, in each vector step.

 Block Diagram

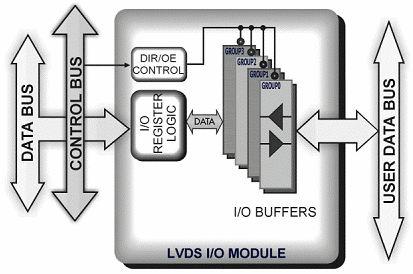

A block diagram of the GC5960  is displayed in the figure below:

GC5960 Block Diagram

 GC5960  Block Diagram

Function

The GC5960 bi-directional I/O Module interfaces DIO boards to external equipment and UUTs that uses the LVDS standard. Using the LVDS standard insure unparalleled signal integrity while maintaining high frequency in any environment.

Control

Tri State – High impedance outputs can be enabled or disabled in groups of eight during vector execution. The high impedance output state supports the connection of DIO boards to a UUT bus up to 32 bits wide.

Retain Last Value – The output mode can be configured to either retain the last value on vector halt, or switch to high impedance.

Line Terminations – Terminators can be switched in or out under program control. 180/330 or 330/390 SIPs are standard. SIPs mount in sockets to accept other (user-supplied) termination values.

UUT-Side I/O Data

The table below describes a GC5050 interface to UUT data signals when a GC5960 Module is mounted on the motherboard.

Pin

Signal

Type

Pin

Signal

Type

Pin

Signal

Type

1

IO0+

I/O

24

I/O23+

I/O

47

I/O12-

P

2

IO1+

I/O

25

I/O24+

I/O

48

I/O13-

P

3

IO2+

I/O

26

I/O25+

I/O

49

I/O14-

P

4

IO3+

I/O

27

I/O26+

I/O

50

I/O15-

P

5

IO4+

I/O

28

I/O27+

I/O

51

I/O16-

P

6

IO5+

I/O

29

I/O28+

I/O

52

I/O17-

P

7

IO6+

I/O

30

I/O29+

I/O

53

I/O18-

P

8

IO7+

I/O

31

I/O30+

I/O

54

I/O19-

P

9

IO8+

I/O

32

I/O31+

I/O

55

I/O20-

I/O

10

IO9+

I/O

33

VTH

P

56

I/O21-

I/O

11

IO10+

I/O

34

GND

GND

57

I/O22-

I/O

12

IO11+

I/O

35

I/O0-

I/O

58

I/O23-

I/O

13

IO12+

I/O

36

I/O1-

I/O

59

I/O24-

I/O

14

IO13+

I/O

37

I/O2-

I/O

60

I/O25-

I/O

15

IO14+

I/O

38

I/O3-

I/O

61

I/O26-

I/O

16

IO15+

I/O

39

I/O4-

I/O

62

I/O27-

I/O

17

IO16+

I/O

40

I/O5-

I/O

63

I/O28-

I/O

18

IO17+

I/O

41

I/O6-

I/O

64

I/O29-

I/O

19

IO18+

I/O

42

I/O7-

I/O

65

I/O30-

I/O

20

IO19+

I/O

43

I/O8-

I/O

66

I/O31-

I/O

21

IO20+

I/O

44

I/O9-

I/O

67

VTH

P

22

IO21+

I/O

45

I/O10-

I/O

68

GND

GND

23

IO22+

I/O

46

I/O11-

I/O







UUT-Side I/O Connections with a GC5960 Mounted

Notes for the table:

●     I/O0-I/O31: Differential I/O Data Lines

●     VTH: High terminators voltage. (Usually VCC)

●     P: Power

●     GND: Ground

Specifications



Min

Type

Max

I/O Channels Per Module

32

Terminations



Type



Output Level

Diff. Magnitude







Between States







Input Level

Positive-Going Diff. Threshold







Negative-Going Diff. Threshold







High







Low







Dynamic Transition Current







Power







Propagation

Delay Output







Delay Input







Output Skew







Temperature Range

Operating



0 to +50°C



Storage



-20 to +70°C



Size

4.40x 3.40 Inch

Weight
