Clicking on Advanced Page tab will show the Advanced Page as shown in the figure below:

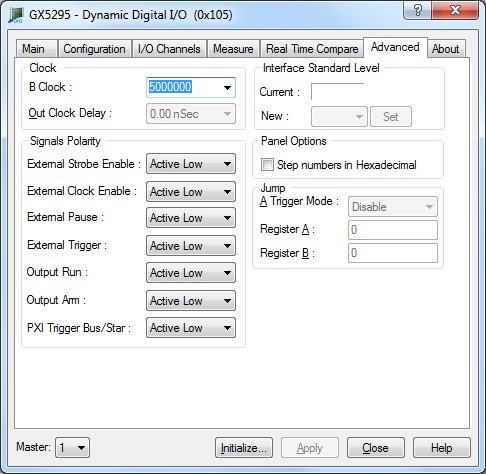

Virtual Panel - I/O Channels Advanced Page
Clock group:
B Clock: Sets/display the B clock frequency.
OutClock Dlay: Sets/display the delay added between the main clock and the out clock signal on the timing connector.
Jump group (Gx5150 only):
Jump A Trigger Mode: Sets/display the trigger mode for the external Jump A line.
Jum Register A: Sets/display the jump address for register A.
Jum Register B: Sets/display the jump address for register B.
Interface Standard Level group (Gx5290/Gx5280 only) :
Current: Display the current programmed Interface Standard Level.
New: Select the Interface Standard Level, Interface Standard Level will only be applied after rebooting the system.
Panel Options group:
Steps in hexadecimal: When checked the main tab shows steps in hexadecimal.
Signals Polarity group:
External Strobe Enable (Dropdown list): external strobe enables input signal Active mode (Timing connector) can be set as one of the following:
Active Low: signal is active when low level is present (default).
Active High: signal is active when high level is present.
External Clock Enable (Dropdown list): external clock enables input signal Active mode (Timing connector) can be set as one of the following:
Active Low: signal is active when low level is present (default).
Active High: signal is active when high level is present.
External Pause (Dropdown list): external pause enables input signal Active mode (Timing connector) can be set as one of the following:
Active Low: signal is active when low level is present (default).
Active High: signal is active when high level is present.
Active Rising Edge: signal logic when low to high transient occurs.
Active Falling Edge: signal is active when high to low transient occur.
External Trigger (Dropdown list): external trigger input signal Active mode (Timing connector) can be set as one of the following:
Active Low: signal is active when low level is present (default).
Active High: signal is active when high level is present.
Active Rising Edge: signal logic when low to high transient occurs.
Active Falling Edge: signal is active when high to low transient occur.
Output_Run (Dropdown list): output run signal Active mode (Timing connector) can be set as one of the following:
Active Low: signal is active when low level is present (default).
Active High: signal is active when high level is present.
Output Arm (Dropdown list): external arm input signal Active mode (Timing connector) can be set as one of the following:
Active Low: signal is active when low level is present (default).
Active High: signal is active when high level is present.
PXI_Trigger Bus/Start (Dropdown list): external star trigger input signal Active mode (Timing connector) can be set as one of the following:
Active Low: signal is active when low level is present (default).
Active Rising Edge – signal logic when low to high transient occur.
