The Real Time Compare Page will be visible only if there is an initialized Gx529x board that was set to Real Time Compare operation mode.
Clicking on Real Time Compare Page will show the Gx529x Real Time Compare Page as shown in the figure bellow:

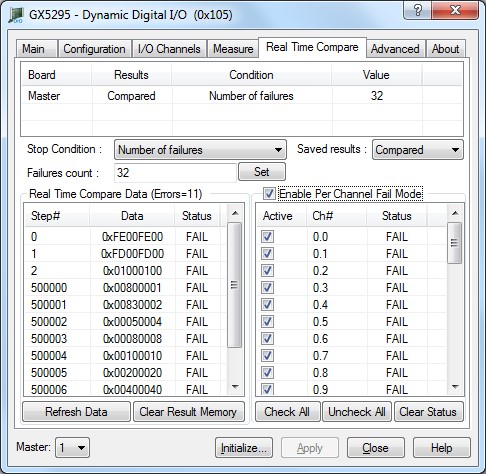

Gx5295 Virtual Panel –Real Time Compare Page
Real Time Compare List (ListControl): Displays the Real Time Compare domain configuration.
Real Time Compare Data (List Control): Display the last Real Time Compare run results.
Refresh Data (Button): Read a block of data from the onboard comparison result memory. The board has to be in Real Time Compare operating mode prior calling this function. See the DioDomainSetupOperatingMode function for more details.
Clear Result Memory (Button): Clears all the onboard comparison result memory. This function is called by the driver internally whenever the DioArm command is called. The onboard comparison result memory is cleared each time the board is triggered.
Note: the Real Time Compare functionality is supported by GX529x boards with firmware versions 0x8A00 and above.
Per Channel Fail Mode (List Control): Sets/display all the channels in the domain status.
Enable Per Channel Fail Mode (Check Box Button): Sets/display the Real Time Compare mode. UnCheck=Default Real Time Compare mode operating mode. Supported by supported only by GX529x boards with firmware versions 0x8A00 and above. Check=In this mode all default Real Time Compare operating mode are supported, but in addition when running vectors only the first failure per channels will be logged. Supported by supported only by GX5295 boards with firmware versions 0xF605 and above.
Check All (Button): Sets all the channels in the domain to active channels when in real time compare per channel fail mode.
Uncheck All (Button): Resets all the channels in the domain to active channels when in real time compare per channel fail mode.
Clear Status (Button): Clears all the channels in the domain per channel failed status. Arming clears all the channels in the domain per channel failed status.
