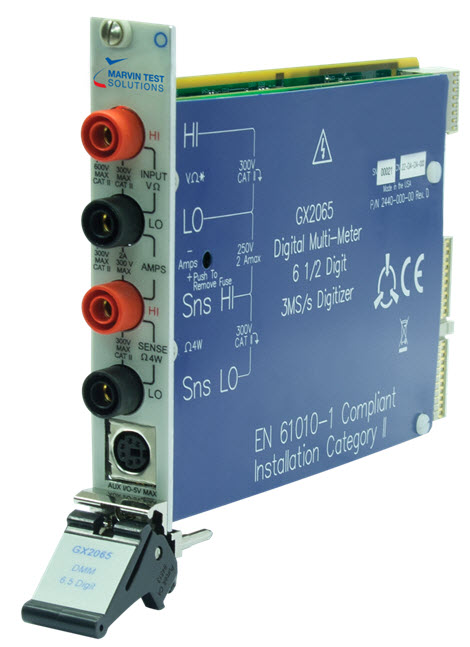

The GX2065 is a 3U PXI instrument card. The front connectors consist of four banana type connectors and a DIN connector (see the figure below). For more information about the connectors and their location on the board refer to Installation and Connections.
Warning
- The GX2065’s measurement inputs are rated for Measurement Category II
circuits. The equipment cannot be connected to circuits with transients
greater than 2.5kV peak or working voltages greater than 300 Volts. Current
measurements are only rated to 250 Volts and 2 Amps DC or peak AC. Do
not connect measurement inputs to Category III or IV circuits.
The GX2065 can make the following measurements:
DCV — DC voltage measurements from 0.1µV to 300V
ACV — AC voltage measurements from 0.1µV to 425Vp
DCI — DC current measurements from 10nA to 2A
ACI — AC current measurements from 3µA to 2A peak
2-wire ohms — 2-wire resistance measurements from 100µ ohms to 100M ohms
4–wire ohms — 4-wire resistance measurements from 100µ ohms to 100M ohms
Frequency — Frequency measurements from 3Hz to 500kHz
Period — Period measurements from 333ms to 2µs
GX2065 Board
