After the board is initialized, the panel is enabled and will display the current setting of the board. The following picture shows the Setup page settings:

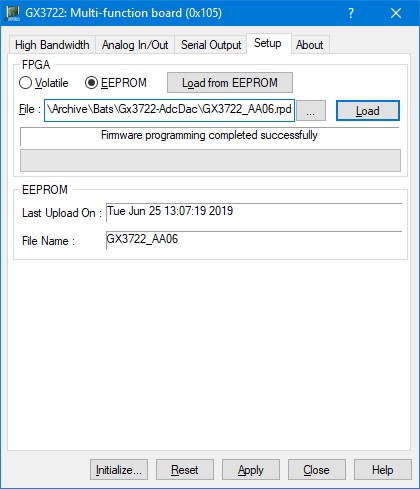

GX3722 Virtual Panel – Setup page
The following controls are shown in the Setup page:
Volatile radio button: Select this radio button to load the File to the Volatile (current) FPGA configuration.
EEPROM radio button: Select this radio button to load File to the EEPROM FPGA.
Load from EEPROM button: Loads the volatile (current FPGA) with the FPGA configuration that is stored in the EEPROM.
File text box: File path to the programming file intended to load the volatile FPGA or EEPROM. The File type must be Serial Vector File (.SVF) for Volatile loading or Raw Programming Data (.RPD) file for EEPROM.
Load Button: Starts the loading process, either to the volatile FPGA or to the EEPROM, depending on which radio button the user selects.
EEPROM Last Upload On Text: Indicates the last time the EEPROM was loaded.
EEPROM File Name Text: Indicates the last file name that was written to the EEPROM.
