Simulating the Design

To simulate the design, we will use ModelSim application from Intel/Altera. You can download the software for free form the Intel/Altera website. There is a test bench for this tutorial that is already created for you inside the GXFPGA\Examples\Quartus\GX3700\Tutorial_VHDL.

Follow these steps to simulate the design:

1.      Open the ModelSim application:

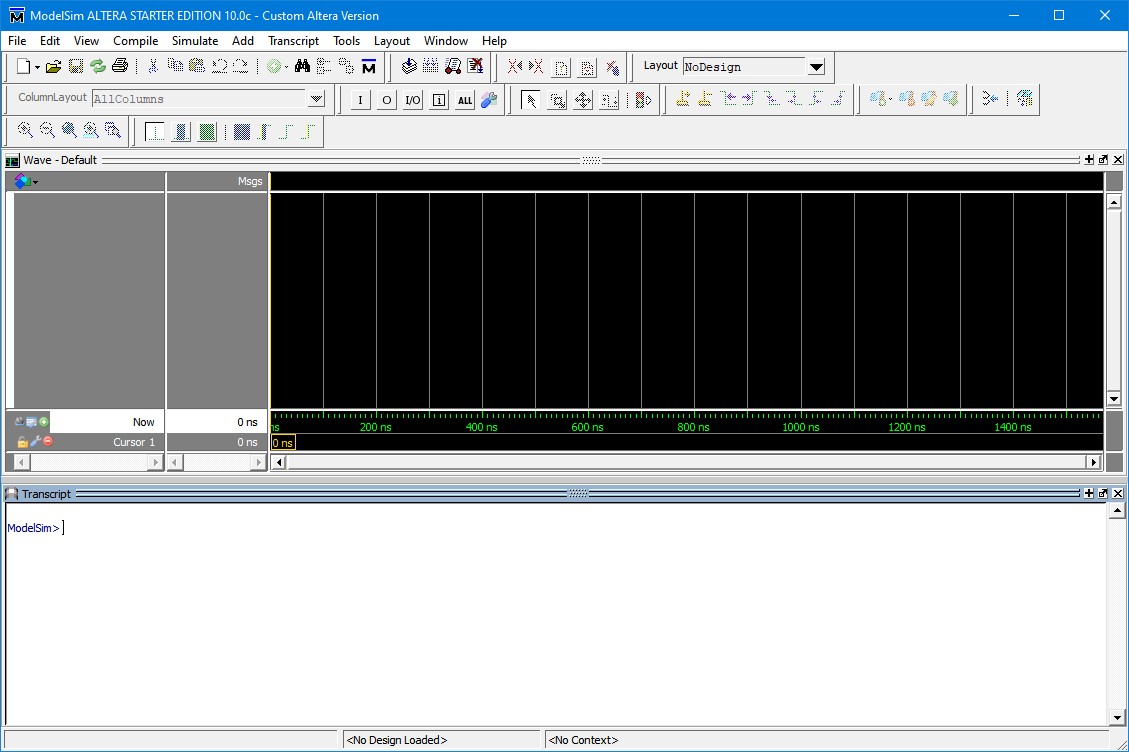

ModelSim Main ModelSim Main Window

2.    Click Fileà Change Directory and choose the sim folder under the Tutorial folder. At this point the ModelSim should display the simulation pins:

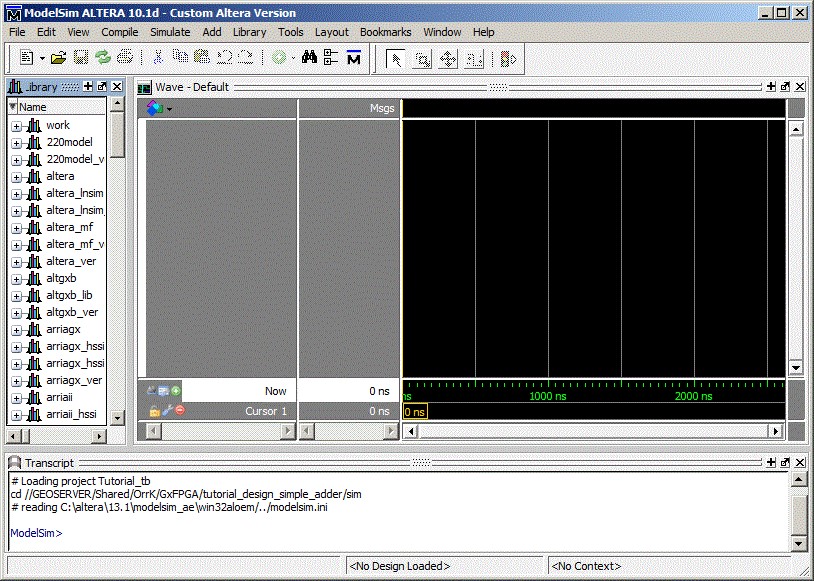

ModelSim Tutorial ModelSim Tutorial Simulation

3.  Click Toolsà TclàExecute Macro… and choose sim.tcl, and click Open. When ModelSim asks to close the current project, click Yes. The screen should appear like the screen below:

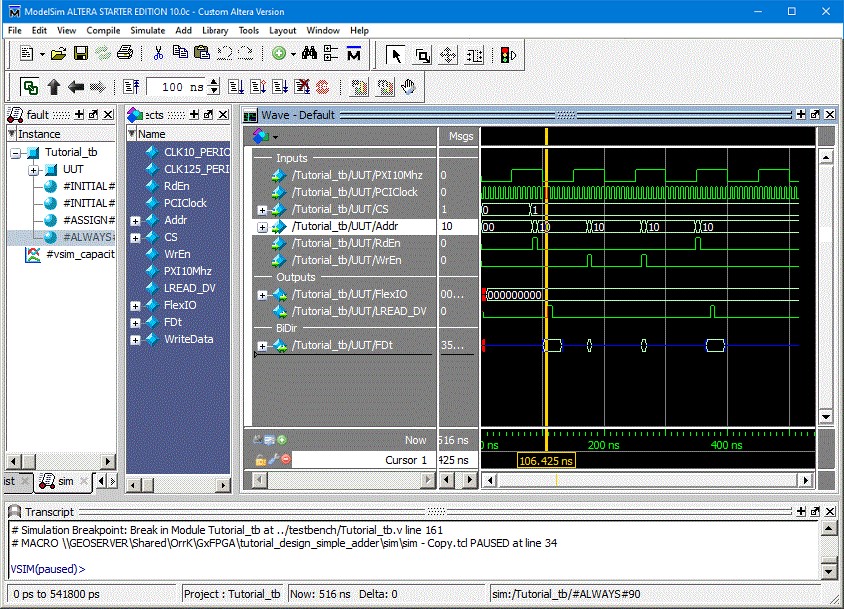

Simulation of Design
