Configure Project to Output SVF and RPD Files

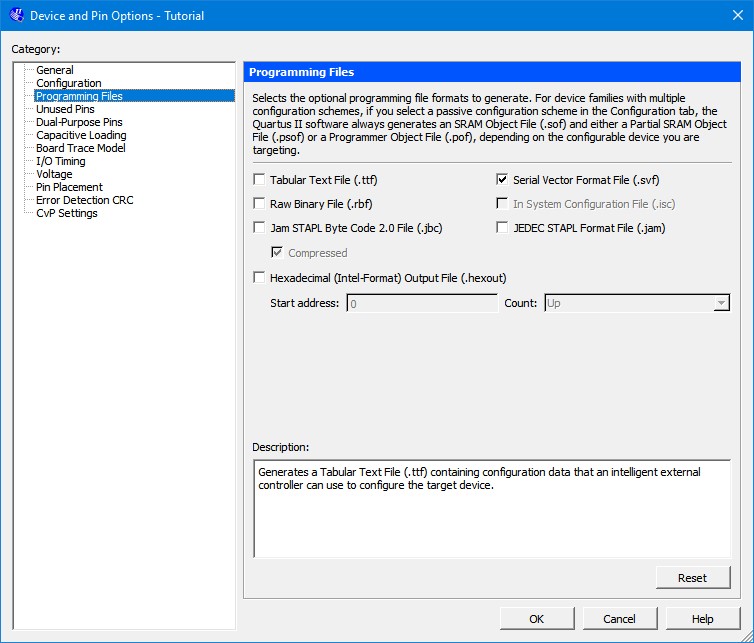

To ensure that a SVF file is generated upon project compilation, go to the Assignments, Device ... and click on the Device and Pin Options button. Then click on the Programming Files and verify that the Serial Vector Format File checkbox has been selected.

Select SVF as Output File

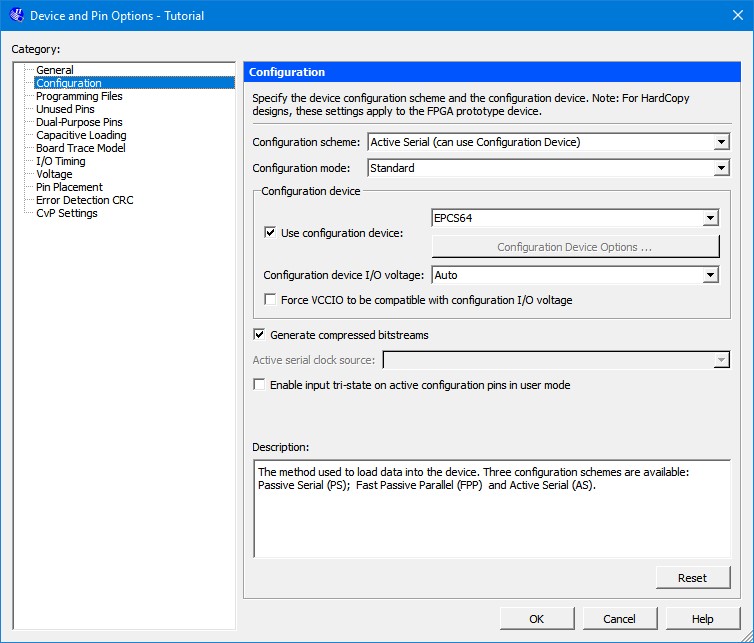

Now click on the Configuration choose Active Serial Configuration Scheme, check Use Configuration Device checkbox and select EPCS64 as the configuration device from the drop-down selection. Finally click on OK twice to exit the settings dialog boxes.

Select Configuration Device
