Connector/Jumpers |
Description |
JP2 |
Reserved. Normally disconnected. |
JP3 |
Connect 3.3V to VCCIO for customer programmable FPGA. Normally connected. |
JP4 |
Connect 2.5V to VCCIO for customer programmable FPGA. Normally disconnected. |
JP5 |
Connect 1.2V to VCCIO for customer programmable FPGA. Normally disconnected. |
GX3700 Jumpers
The figure below shows GX3700 board JP2, JP3, JP4 and JP5 jumpers (in red rectangular):

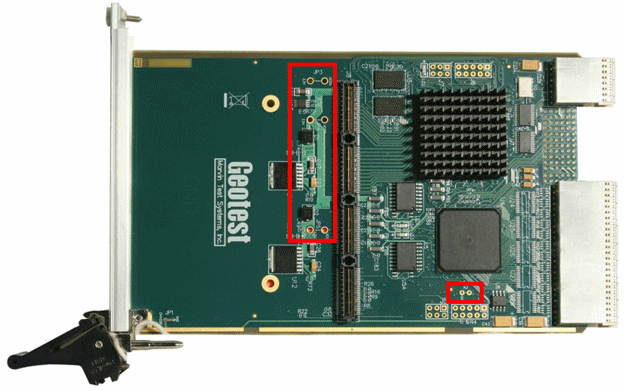

GX3700 – Front View Jumpers JP3-JP5 and JP2

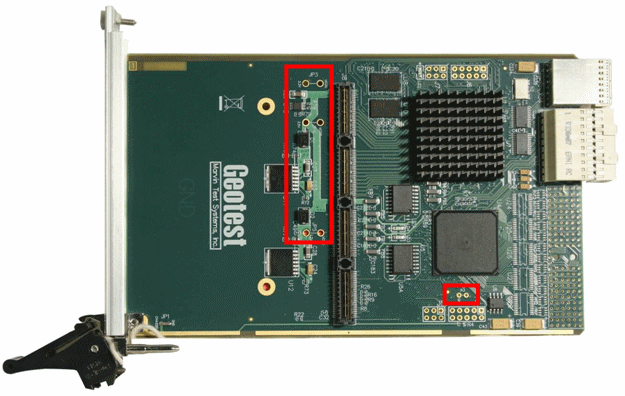

GX3700e – Front View Jumpers JP3-JP5 and JP2

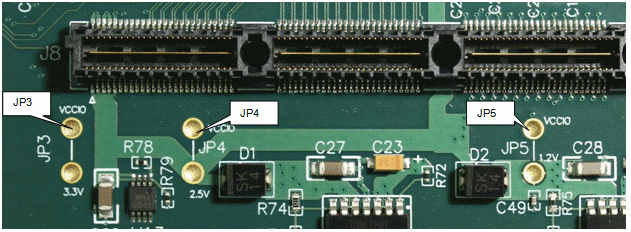

GX3700/GX3700e Jumpers JP3-JP5
The figure below shows GX3700 board JP2 Jumper:

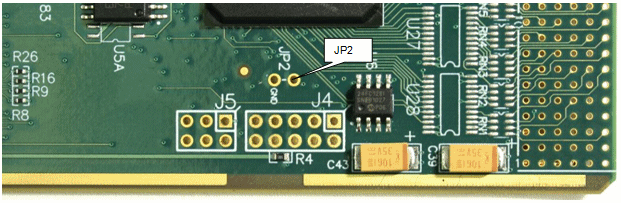

GX3700/GX3700e Jumper JP2
