The GX3700 is a 3U PXI hybrid slot compatible instrument card that consists of 160 TTL I/O Channels divided into groups of 40 channels. Each of these groups is connected to a 68 pin SCSI type connector on the front panel of the instrument (J1-J4) using a daughter board module (GX3701). A short on JP7 will force the user FPGA to be configured automatically on boot up using the contents of the EEPROM. For more information about the connectors and jumpers and their location on the board refer to Installation and Connections section.

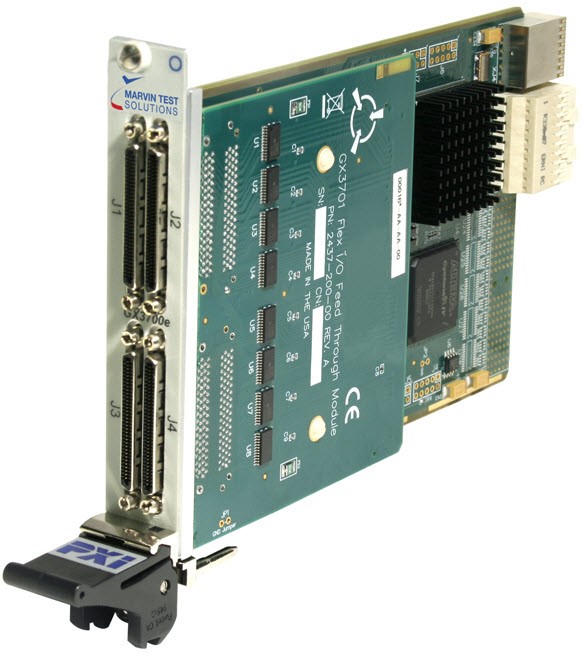

GX3700e Board with the GX3701 Module Mounted

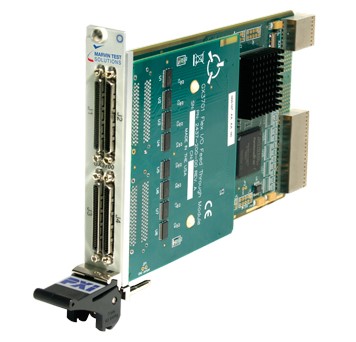

GX3700 Board with the GX3701 Module Mounted
