J1 I/O Signals (68-Pin to UUT)

The following table defines the GX5296 DIO I/O signals. This interface uses a 68-pin VHD connector.

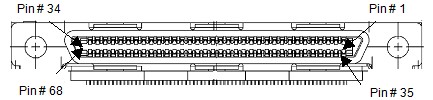

GX5296 Front Panel Connector 68 pin (VHD) connector



Pin
Signal
Type
Pin
Signal
Type
Pin
Signal
Type
Pin
Signal
Type
1
IO0
I/O
18
IO17
I/O
35
GND
GND
52
GND
GND
2
IO1
I/O
19
IO18
I/O
36
GND
GND
53
GND
GND
3
IO2
I/O
20
IO19
I/O
37
GND
GND
54
GND
GND
4
IO3
I/O
21
IO20
I/O
38
GND
GND
55
GND
GND
5
IO4
I/O
22
IO21
I/O
39
GND
GND
56
GND
GND
6
IO5
I/O
23
IO22
I/O
40
GND
GND
57
GND
GND
7
IO6
I/O
24
IO23
I/O
41
GND
GND
58
GND
GND
8
IO7
I/O
25
IO24
I/O
42
GND
GND
59
GND
GND
9
IO8
I/O
26
IO25
I/O
43
GND
GND
60
GND
GND
10
IO9
I/O
27
IO26
I/O
44
GND
GND
61
GND
GND
11
IO10
I/O
28
IO27
I/O
45
GND
GND
62
GND
GND
12
IO11
I/O
29
IO28
I/O
46
GND
GND
63
GND
GND
13
IO12
I/O
30
IO29
I/O
47
GND
GND
64
GND
GND
14
IO13
I/O
31
IO30
I/O
48
GND
GND
65
GND
GND
15
IO14
I/O
32
IO31
I/O
49
GND
GND
66
GND
GND
16
IO15
I/O
33
NC

50
GND
GND
67
NC

17
IO16
I/O
34
DUT GND (NC)
GND Sense
51
GND
GND
68
DUT GND (NC)
GND Sense
J1 68-Pin I/O Signals

Notes:

●     I/O0 – I/O31: Single Ended Data Lines.

●     DUT GND – Device Under Test ground sense Input - N/C.
