The panel Measure tab is used to display the DIO domain boards channels measurements as shown here:

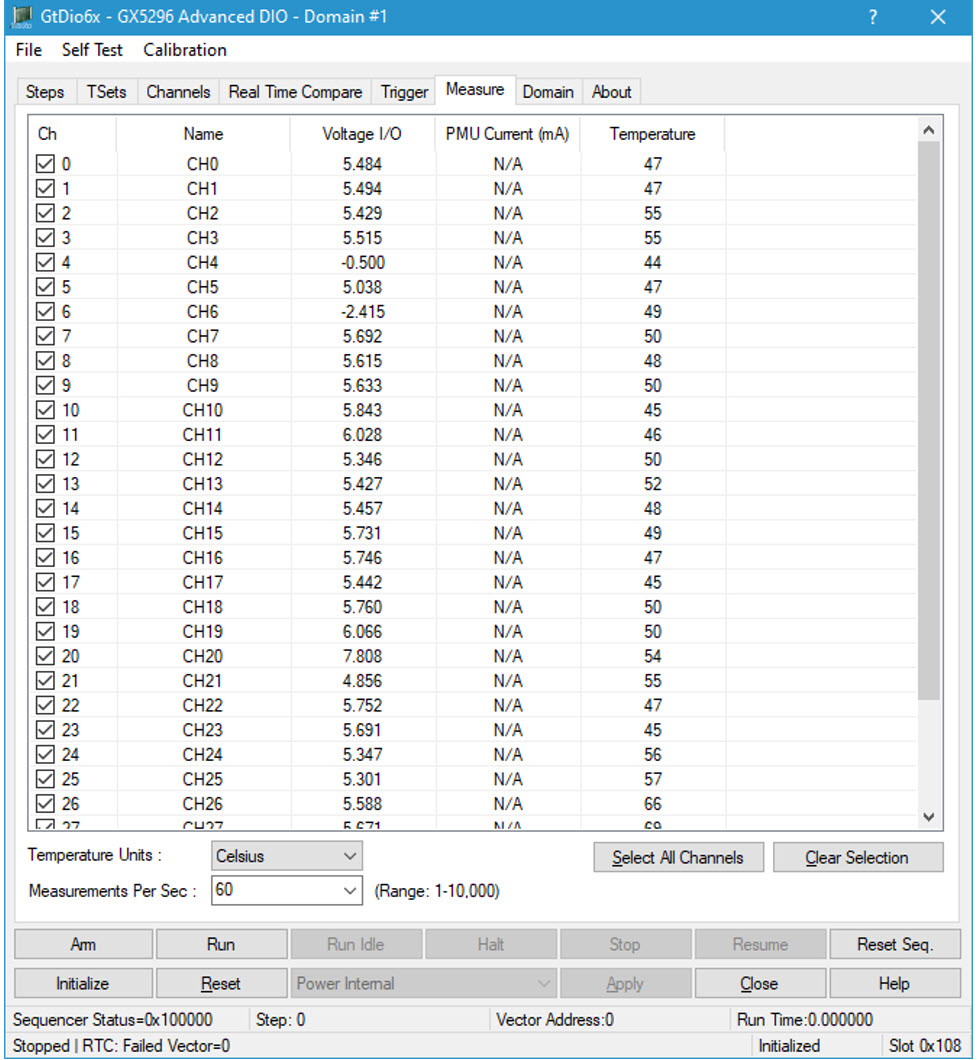

Virtual Panel – Measure page
The following controls are shown in the Measure page:
Measure list box: Displays the channel settings.
Ch: Displays the 0 -based channel index.
Name: Displays the channel's name.
Voltage I/O: Displays the channel’s measured voltage on the I/O Channel.
PMU Current(mA): Displays the channel’s measured PMU Forced Current.
Temperature: Displays the pin electronics die temperature, in Celsius or Fahrenheit, as selected by the Temperature Units drop list box.
Relevant API functions: GtDio6xMeasure.
Temperature Units drop list box: Sets/display the temperature units of the temperature measurements, values are:
· Celsius.
· Fahrenheit.
Measurements Per Sec dropdown box: Sets/display the Measurements Per Sec, the larger the number the measures will be faster but with less accuracy, user can type in any number between 1-10,000, or select from the pre-defined drop-down value list are:
20
40
50
60
80
100
250
500
1000
5000
10000
Relevant API functions: GtDio6xMeasure.
Select All Channels button: set all the channels check box.
Clear Selection button: clear all the channels check box.
