Write Vector Memory

The vector memory consists of opcodes that are executed by the sequencer. The API allows users to write to one or more channels at a time in a random-access fashion.

To write to the Vector Memory, use the Edit Vector editor in the Steps page:

Fill the 10 vectors define for step 0 as follows:

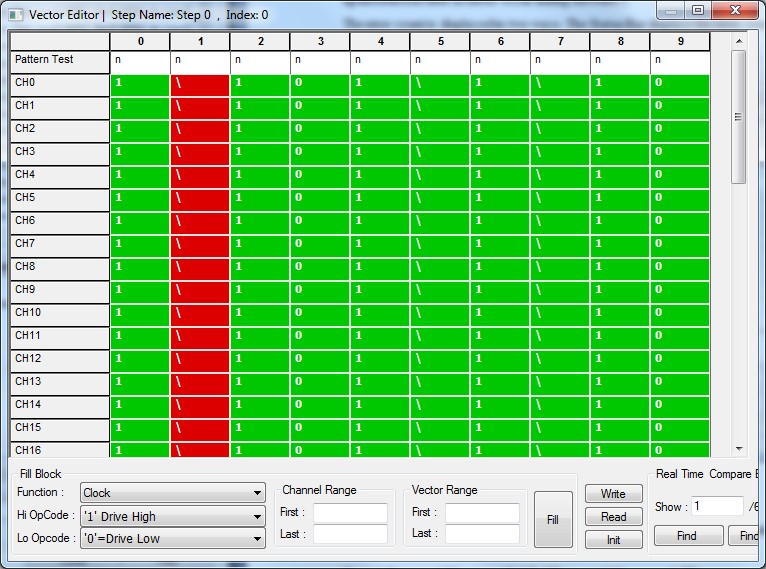

Vector Editor

Relevant API functions: GtDio6xWriteVectorMemory.

Relevant API functions: GtDio6xReadVectorMemory .

Relevant API functions: GtDio6xFillVectors.
