Clicking on the About tab will show the About page as shown in the figure below:

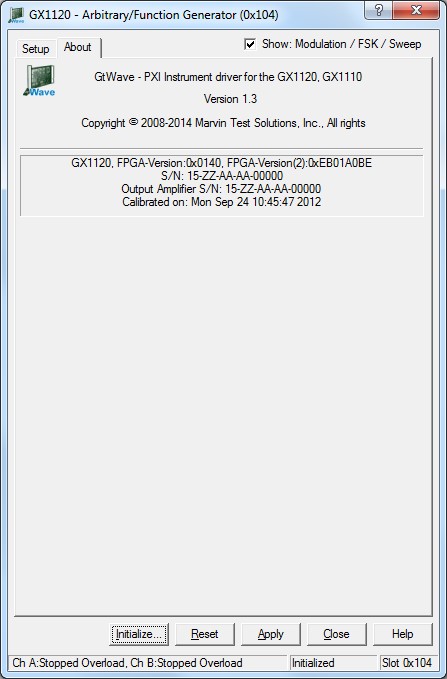

GX1120/GX1120 Virtual Panel – About Page
The following controls are shown in the About page:
The top part of the About page displays version and copyright of the GtWave driver. The bottom part displays the board summary.
The About page also contains a button Upgrade Firmware… which is used to upgrade the board’s FPGA firmware. This button maybe used only when the board requires upgrade as directed by Marvin Test Solutions support. The upgrade requires a firmware file (.jam) that is written to the board FPGA. After the upgrade is complete, you must shut down the computer to recycle power to the board.
