GX164x Virtual Panel ARB Page

The following figure shows the ARB page (GX1649 Only) followed by an explanation of each one of the controls displayed on the page:

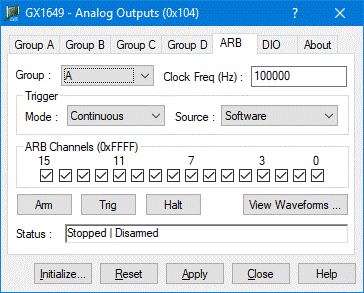

GX1649 (Only) Virtual Panel – ARB page

Group Dropdown list: Select/display the ARB group

Clock Freq Edit Box:  Used to enter the desired frequency for the ARB Group sequencer

ARB Channels Group Box: Displays the hex representation of which channels in the Group are selected for participation in the ARB function. Contains the ARB Channels Checkboxes.

ARB Channels Checkboxes: Select/display the channels in the Group which will participate in the ARB function

Arm button: Arms the ARB Group sequencer prior to a trigger

Trig button: Triggers the ARB Group sequencer (for execution)

Halt button: Halts (Disarms) the ARB Group sequencer

View Waveforms button…: Displays the waveform stored in ARB memory for the selected Group, see the figure below.

Status label: Displays the ARB Group sequencer status

The figure below shows the ARB page Waveform Dialog Box (GX1649 Only) followed by an explanation of each one of the controls displayed on the page:

ARB page Waveform Dialog Box (GX1649 Only)

Channel Dropdown list: Select/display the Channel within the currently selected Group to view.
