GX164x Virtual Panel DIO page

The figure below shows the DIO page (GX1649 Only) followed by an explanation of each one of the controls displayed on the page:

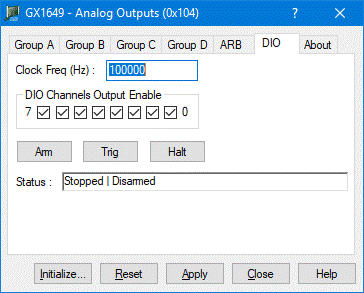

GX1649 (Only) Virtual Panel – DIO page

Clock Freq Edit Box:  Used to enter the desired frequency for the DIO sequencer

DIO Channels Output Enable Checkboxes: Select/display the DIO channel output enable state

Arm button: Arms the DIO sequencer prior to a trigger

Trig button: Triggers the DIO sequencer (for execution)

Halt button: Halts the DIO sequencer

Status label: Displays the DIO sequencer status
