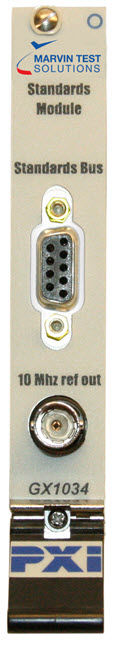

The figure below GX1034 Front Connector shows the available GX1034 board connector with description:
GX1034 Front Connectors
GX1034 Front DB-9 Connector Pin Number Layout
Pin# |
Signal |
Description |
1 |
Isolated GND (AGND |
Isolated GND (AGND |
2 |
Measure Low |
AC and DC voltages and resistance reference |
3 |
Sense Low |
4-wire connections |
4 |
Not Connected |
Not Connected |
5 |
PXI Ground |
PXI Ground |
6 |
Measure High |
AC and DC voltages and resistance reference |
7 |
Sense High |
4-wire connections |
8 |
Not Connected |
Not Connected |
9 |
Chk BIT adaptor is Connected |
Check BIT adaptor is Connected |
