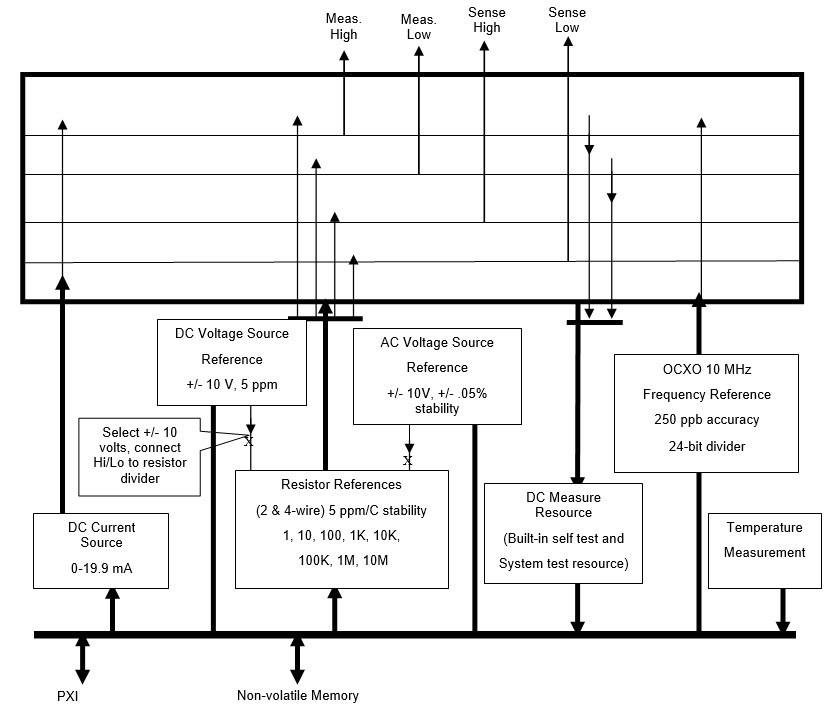

The block diagram below in the figure below illustrates the GX1034 architecture. The board communicates with the host computer using the PCI interface. The software driver and application software configures board resources and makes connections to the 4-wire bus. The board has a 9 pin sub-D connector and a BNC connector on the front panel.
GX1034 Block Diagram
