The GX1838 is a Precision Multifunction DC Source with 8 channels. Each channel can be connected to one of three rails at a time.
The card has three individual rails (Rail A, Rail B, and Rail C). Each rail has a set of resources that it may be connected to.
Sources for Rail A:
Open (not connected).
High-resolution programmable high current voltage source. Voltages can be set from –10V to +32V @ 500mA for the standard version or –20V to +20V @ 500mA for the GX1838-20 version.
External source via the 25-pin connector.
Sources for Rail B:
Open (not connected).
High-resolution programmable high current voltage source. Voltages can be set from –10V to +32V @ 500mA for the standard version or –20V to +20V @ 500mA for the GX1838-20 version.
External source via the 25-pin connector.
Sources for Rail C:
Open (not connected).
High-resolution programmable high current voltage source. Voltages can be set from –10V to +32V @ 500mA for the standard version or –20V to +20V @ 500mA for the GX1838-20 version.
External source via the 25-pin connector.
Fixed load of 500 Ohms.

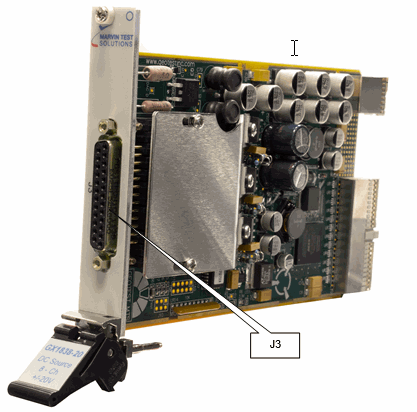

The figure below shows the GX1838 with its J3 connector
:
GX1838 Board, Component Side
