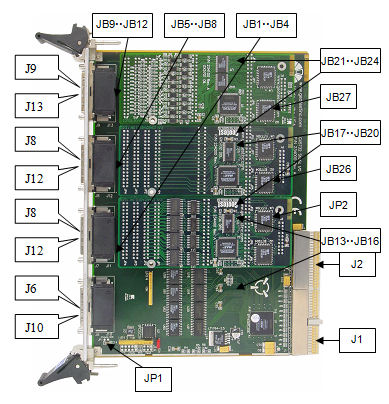

The figure ‎below shows the available GX5731 board connectors and jumpers followed by their description:
GX5731 Connectors and Jumpers
Connector/Jumpers |
Description |
J1 |
PCI/PXI Connector |
J2 |
PCI/PXI Connector |
J6 |
Counter connector |
J7 |
Port 0 digital I/O Connector |
J8 |
Port 1 digital I/O Connector |
J9 |
Port 2 digital I/O Connector |
J10 |
Port 3 digital I/O Connector |
J11 |
Port 4 digital I/O Connector |
J12 |
Port 5 digital I/O Connector |
J13 |
Port 6 digital I/O Connector |
JP1 |
Chassis ground jumper |
JP2 |
VCC Select. Factory installed, Do Not Remove |
JB1-JB12 |
Factory Installed Jumpers do not Remove |
JB16-JB24 |
Unpopulated Jumpers for future use |
