The GX5731 is a 6U PXI instrument board that provides seven ports of 32 channels parallel input and output for a total of 224 channels. The seven ports are composed of four Digital I/O ports and three ports that can be configured using variety of I/O Modules interfacing different UUTs.
The four TTL level Digital I/O ports channels have TTL levels, and the direction of each group of eight channels can be programmed as Input or Output.
The three I/O Modules ports expand the ability of the GX5731 by mounting different I/O Modules. Those I/O Module enable the GX5731 to acquire or transmit 32 channels vectors by using high-speed FIFO as well as interfacing different voltage levels, compare data on the fly and output high power signals to name a few.

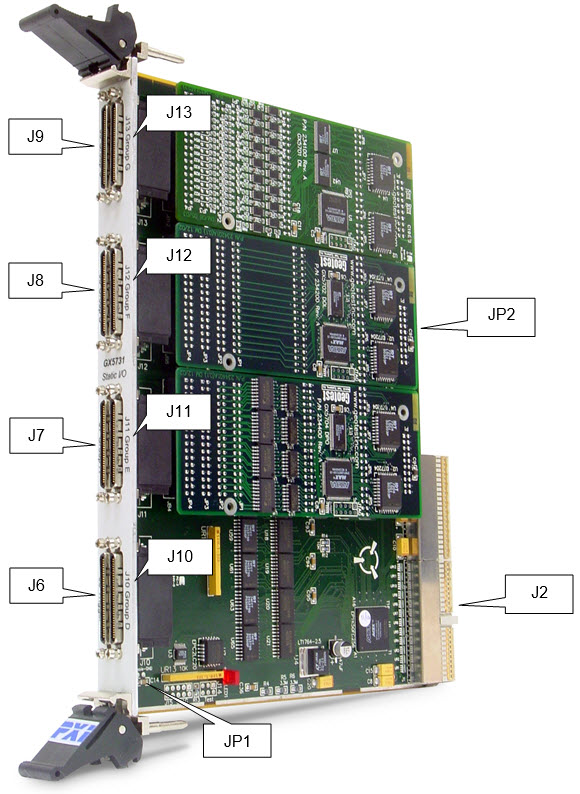

GX5731 Board Side View with three I/O Modules installed
The board has eight 68 pins SCSI connectors describes as follow:
J6 |
External triggers, External User Clock inputs, and internal Clock 0 and 1 output. |
J7-J9 |
I/O Modules signals |
J10 - J13 |
Digital I/O signals |
JP1 |
Factory installed chassis ground jumper. |
JP2 |
Factory installed jumper sets board VCC level (3.3V or 5V). |
J1-J2 |
PXI Bus connector at the back of the board. |
