Clicking on the Advanced tab will show the Advanced page as shown in the figure below:

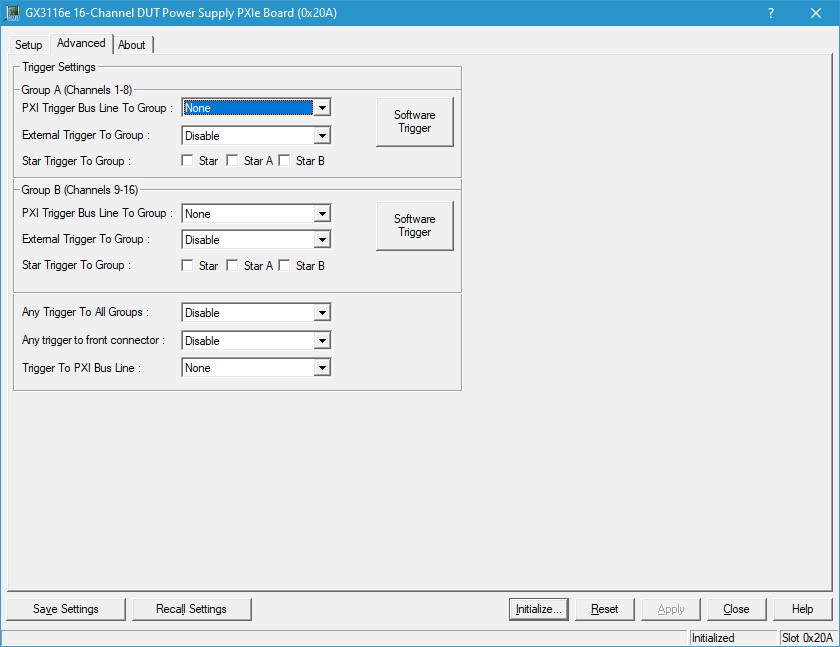

GX3116e Virtual Panel – Advanced Page
The following controls are shown in the Advanced page:
Group A (Channels 1-8) Group Box:
PXI Trigger Bus Line To Group Dropdown List : Sets and displays the specified PXI trigger bus connected to Group A (Channels 1-8) settings. Selection is one of: None, PXI Trigger Bus Line 0, PXI Trigger Bus Line 1, PXI Trigger Bus Line 2, PXI Trigger Bus Line 3, PXI Trigger Bus Line 4, PXI Trigger Bus Line 5, PXI Trigger Bus Line 6, PXI Trigger Bus Line 7,
External Trigger To Group Dropdown List : Sets Group A (Channels 1-8) external trigger state, Selection is one of: Disable, Enable.
Star Trigger To Group : Sets and displays the star triggers that are currently connected to Group A (Channels 1-8), User can check any combination of the star trigger, Star Trigger A, and Star Trigger B.
Software Trigger Button: Issue a software trigger to Group A (Channels 1-8). If any of the trigger functionality of the group is enabled, then a trigger signal will be generated.
Group B (Channels 9-16) Group Box:
PXI Trigger Bus Line To Group Dropdown List : Sets and displays the specified PXI trigger bus connected to Group B (Channels 9-16) settings. Selection is one of: None, PXI Trigger Bus Line 0, PXI Trigger Bus Line 1, PXI Trigger Bus Line 2, PXI Trigger Bus Line 3, PXI Trigger Bus Line 4, PXI Trigger Bus Line 5, PXI Trigger Bus Line 6, PXI Trigger Bus Line 7,
External Trigger To Group Dropdown List : Sets Group B (Channels 9-16) external trigger state, Selection is one of: Disable, Enable.
Star Trigger To Group : Sets and displays the star triggers that are currently connected Group B (Channels 9-16), User can check any combination of the star trigger, Star Trigger A, and Star Trigger B.
Software Trigger button: Issue a software trigger to Group B (Channels 9-16). If any of the trigger functionality of the group is enabled, then a trigger signal will be generated.
Any Trigger To All Groups Dropdown List: Sets and displays the state of any trigger to both group A and B, Selection is: Disable, Enable.
Any trigger to front connector Dropdown List: Sets and displays the trigger to the front connector from any selected trigger state. If enabled and a trigger was issues, the Trigger output is active high and its nominal duration is 1ms. Selection is: Disable, Enable.
Trigger To PXI Bus Line Dropdown List: Sets and displays the specified Trigger to PXI bus trigger line to drive the backplane and if the PXI bus trigger is enabled. Selection is one of: None, PXI Trigger Bus Line 0, PXI Trigger Bus Line 1, PXI Trigger Bus Line 2, PXI Trigger Bus Line 3, PXI Trigger Bus Line 4, PXI Trigger Bus Line 5, PXI Trigger Bus Line 6, PXI Trigger Bus Line 7.
