Connectors and Jumpers

GX6188

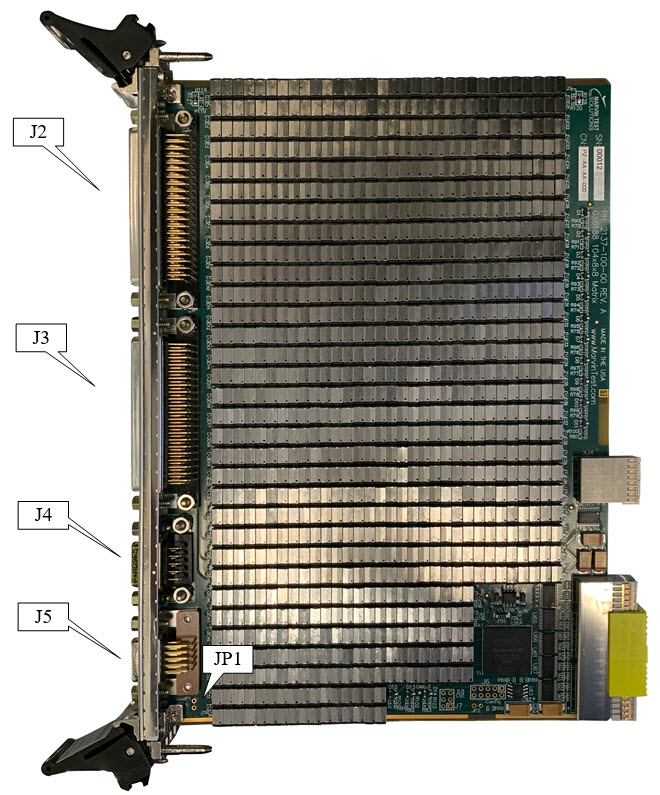

The figure below shows the GX6188 board connectors and jumpers followed by their description:

GX6188 Connectors and Jumpers

J2 – Front Connector: UUT channels connector, Ch 1-52.

J3 – Front Connector: UUT channels connector, Ch 53-104.

J4 – Front Connector: Global Bus connector.

J5 – Front Connector: Resources connector.

JP1 – Chassis Ground Jumper: Connects chassis to power ground
