The GX6192 is a High Frequency 6U PXI card derivative of the GX6256 with several changes in architecture. The GX6192 provides the user with the ability to connect and interface 16 resources to 192 UUT connections. The board consists of sixteen 1x12 multiplexer groups, eight 4x8 matrices, sixteen 2:2 selectors, and sixteen 1:4 input selectors. The GX6192 connects to 16 analog signals bus through a connector in the back. Each multiplexer group routes its signals to one of sixteen channels that are connected to the front connectors.

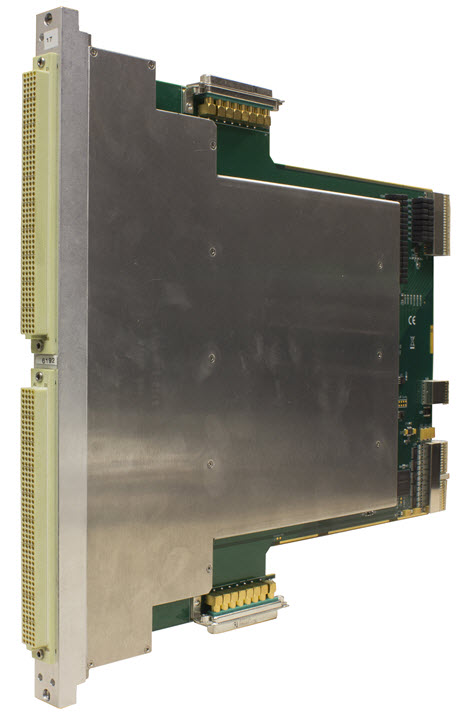

GX6192 High Frequency Mux and Matrix board
