The GX6864 is a multiplexer designed to switch high bandwidth, 75-ohm impedance video signals. The GX6864 provides the user with the ability to connect and interface 8 resources to 64 UUT connections. The board consists of four 2x16 multiplexer groups, four 4x8 matrices, four 4:2 input selectors, and sixteen BIT and backplane (BP) connections. The GX6864 connects to 16 analog signals bussed through a connector in the back. Each mux group routs its signals to one of sixteen channels that are connected to the front connectors.

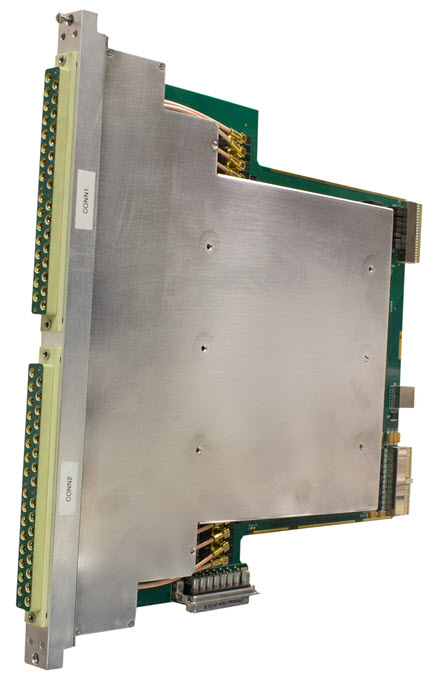

GX6864 Video Multiplexer board
