P10 and P11 Connectors

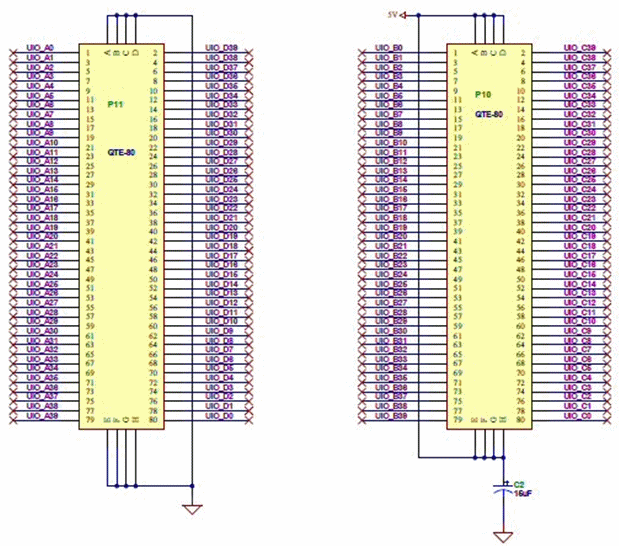

Connectors P10 and P11 are used to connect the GX3500’s front panel VHDCI connectors to the expansion board. The figure below shows the schematic diagram of P10 and P11. The table below lists the pin assignments for P10 and Table P11 Connector Pin Assignments lists the pin assignments for P11. P10 connects user I/O signal groups B and C to J3 and J4 on the GX3500 front panel and P11 connects groups A and D to J1 and J2.

GX3500 Expansion Board – User Connectors

P10 Connector

The following table describes the GX3500 expansion board P10 pin assignments:

Pin #	Name	Front Panel Connection	Pin #	Name	Front Panel Connection
1	UIO_B0	J3-35	2	UIO_C39	J4-68
3	UIO_B1	J3-36	4	UIO_C38	J4-34
5	UIO_B2	J3-37	6	UIO_C37	J4-67
7	UIO_B3	J3-38	8	UIO_C36	J4-33
9	UIO_B4	J3-39	10	UIO_C35	J4-66
11	UIO_B5	J3-40	12	UIO_C34	J4-32
13	UIO_B6	J3-41	14	UIO_C33	J4-65
15	UIO_B7	J3-42	16	UIO_C32	J4-31
17	UIO_B8	J3-43	18	UIO_C31	J4-64
19	UIO_B9	J3-44	20	UIO_C30	J4-30
21	UIO_B10	J3-45	22	UIO_C29	J4-63
23	UIO_B11	J3-46	24	UIO_C28	J4-29
25	UIO_B12	J3-47	26	UIO_C27	J4-62
27	UIO_B13	J3-48	28	UIO_C26	J4-61
29	UIO_B14	J3-49	30	UIO_C25	J4-60
31	UIO_B15	J3-50	32	UIO_C24	J4-59
33	UIO_B16	J3-51	34	UIO_C23	J4-58
35	UIO_B17	J3-52	36	UIO_C22	J4-57
37	UIO_B18	J3-53	38	UIO_C21	J4-56
39	UIO_B19	J3-54	40	UIO_C20	J4-55
41	UIO_B20	J3-55	42	UIO_C19	J4-54
43	UIO_B21	J3-56	44	UIO_C18	J4-53
45	UIO_B22	J3-57	46	UIO_C17	J4-52
47	UIO_B23	J3-58	48	UIO_C16	J4-51
49	UIO_B24	J3-59	50	UIO_C15	J4-50
51	UIO_B25	J3-60	52	UIO_C14	J4-49
53	UIO_B26	J3-61	54	UIO_C13	J4-48
55	UIO_B27	J3-62	56	UIO_C12	J4-47
57	UIO_B28	J3-29	58	UIO_C11	J4-46
59	UIO_B29	J3-63	60	UIO_C10	J4-45
61	UIO_B30	J3-30	62	UIO_C9	J4-44
63	UIO_B31	J3-64	64	UIO_C8	J4-43
65	UIO_B32	J3-31	66	UIO_C7	J4-42
67	UIO_B33	J3-65	68	UIO_C6	J4-41
69	UIO_B34	J3-32	70	UIO_C5	J4-40
71	UIO_B35	J3-66	72	UIO_C4	J4-39
73	UIO_B36	J3-33	74	UIO_C3	J4-38
75	UIO_B37	J3-67	76	UIO_C2	J4-37
77	UIO_B38	J3-34	78	UIO_C1	J4-36
79	UIO_B39	J3-68	80	UIO_C0	J4-35
A	5V	Power*	B	5V	Power*
C	5V	Power*	D	5V	Power*
E	5V	Power*	F	5V	Power*
G	5V	Power*	H	5V	Power*

P10 Connector pin assignments

*Connect these pins together. Maximum 4A for the 5V rail. May be limited by PXI chassis. Connect a 10uF-22uF capacitor if using these pins.

P11 Connector

The following table describes the GX3500 expansion board P11 pin assignments:

Pin #	Name	Front Panel Connection	Pin #	Name	Front Panel Connection
1	UIO_A0	J1-35	2	UIO_D39	J2-68
3	UIO_A1	J1-36	4	UIO_D38	J2-34
5	UIO_A2	J1-37	6	UIO_D37	J2-67
7	UIO_A3	J1-38	8	UIO_D36	J2-33
9	UIO_A4	J1-39	10	UIO_D35	J2-66
11	UIO_A5	J1-40	12	UIO_D34	J2-32
13	UIO_A6	J1-41	14	UIO_D33	J2-65
15	UIO_A7	J1-42	16	UIO_D32	J2-31
17	UIO_A8	J1-43	18	UIO_D31	J2-64
19	UIO_A9	J1-44	20	UIO_D30	J2-30
21	UIO_A10	J1-45	22	UIO_D29	J2-63
23	UIO_A11	J1-46	24	UIO_D28	J2-29
25	UIO_A12	J1-47	26	UIO_D27	J2-62
27	UIO_A13	J1-48	28	UIO_D26	J2-61
29	UIO_A14	J1-49	30	UIO_D25	J2-60
31	UIO_A15	J1-50	32	UIO_D24	J2-59
33	UIO_A16	J1-51	34	UIO_D23	J2-58
35	UIO_A17	J1-52	36	UIO_D22	J2-57
37	UIO_A18	J1-53	38	UIO_D21	J2-56
39	UIO_A19	J1-54	40	UIO_D20	J2-55
41	UIO_A20	J1-55	42	UIO_D19	J2-54
43	UIO_A21	J1-56	44	UIO_D18	J2-53
45	UIO_A22	J1-57	46	UIO_D17	J2-52
47	UIO_A23	J1-58	48	UIO_D16	J2-51
49	UIO_A24	J1-59	50	UIO_D15	J2-50
51	UIO_A25	J1-60	52	UIO_D14	J2-49
53	UIO_A26	J1-61	54	UIO_D13	J2-48
55	UIO_A27	J1-62	56	UIO_D12	J2-47
57	UIO_A28	J1-29	58	UIO_D11	J2-46
59	UIO_A29	J1-63	60	UIO_D10	J2-45
61	UIO_A30	J1-30	62	UIO_D9	J2-44
63	UIO_A31	J1-64	64	UIO_D8	J2-43
65	UIO_A32	J1-31	66	UIO_D7	J2-42
67	UIO_A33	J1-65	68	UIO_D6	J2-41
69	UIO_A34	J1-32	70	UIO_D5	J2-40
71	UIO_A35	J1-66	72	UIO_D4	J2-39
73	UIO_A36	J1-33	74	UIO_D3	J2-38
75	UIO_A37	J1-67	76	UIO_C2	J2-37
77	UIO_A38	J1-34	78	UIO_D1	J2-36
79	UIO_A39	J1-68	80	UIO_D0	J2-35
A	5V	Power*	B	5V	Power*
C	5V	Power*	D	5V	Power*
E	5V	Power*	F	5V	Power*
G	5V	Power*	H	5V	Power*

P11 Connector Pin Assignments

Programming Support for Expansion Boards

Programming expansion board is done using the GXFPGA registers and memory access functions. In addition a GxFpgaSetExpansionBoardBypass can be used to direct the I/O banks to the expansion board. The GxFpgaGetExpansionBoardID can also be used to detect the installed expansion board ID. The expansion board ID is read from P8 pins 19, 21, 23 and 25 to form a 4 bit integer (0-15).
