The following table and figures describes the GX3500 connectors and jumpers.
Connector/Jumpers |
Description |
J1 |
Flex I/O Bank A (I/O channels 0-40). |
J2 |
Flex I/O Bank B (I/O channels 41-80). |
J3 |
Flex I/O Bank C (I/O channels 81-120). |
J4 |
Flex I/O Bank D (I/O channels 121-160). |
JP3 |
Force I/O channels 0-39 to be routed directly to the J1 connector. See figure GX3500 Front View Jumpers JP3 JP6. |
JP4 |
Force I/O channels 40-79 to be routed directly to the J2 connector. See figure GX3500 Front View Jumpers JP3 JP6. |
JP5 |
Force I/O channels 80-119 to be routed directly to the J3 connector. See figure GX3500 Front View Jumpers JP3 JP6. |
JP6 |
Force I/O channels 120-159 to be routed directly to the J4 connector. See figure GX3500 Front View Jumpers JP3 JP6. |
JP7 |
Force user FPGA to be configured automatically by the EEPROM contents when power is first applied to the instrument (upon power up of the host system). See figure GX3500 Back View Jumper JP7. |

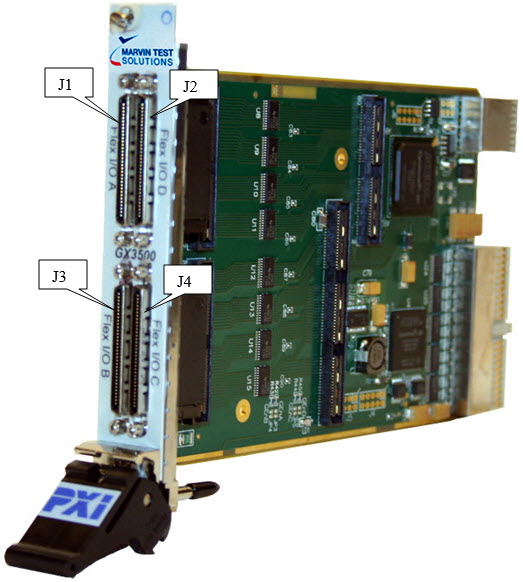

The figure below shows the available GX3500 board connectors and jumpers followed by their description:
GX3500 Connectors (J1-J4)

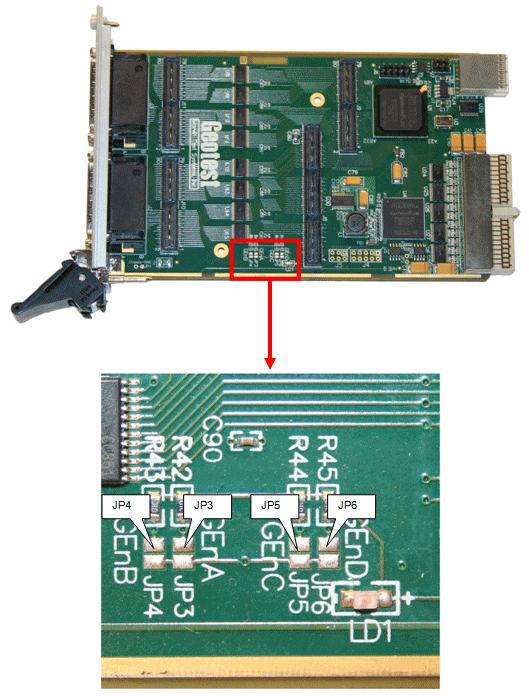

The figure below shows GX3500 board JP3, JP4, JP5 and JP6 jumpers:
.gif "GX3500 Front View Jumpers (JP3-JP6)")
GX3500 – Front View Jumpers (JP3-JP6)

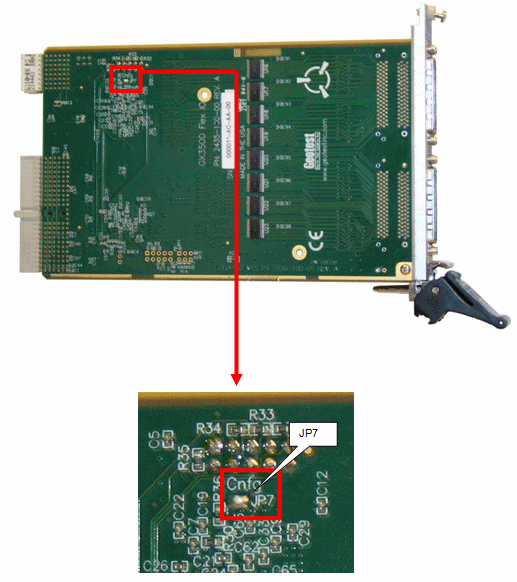

The figure shows GX3500 board JP7 Jumper:
.gif "GX3500 Back View Jumper (JP7)")
