Universal O-Level Armament Tester for Smart & Legacy Systems

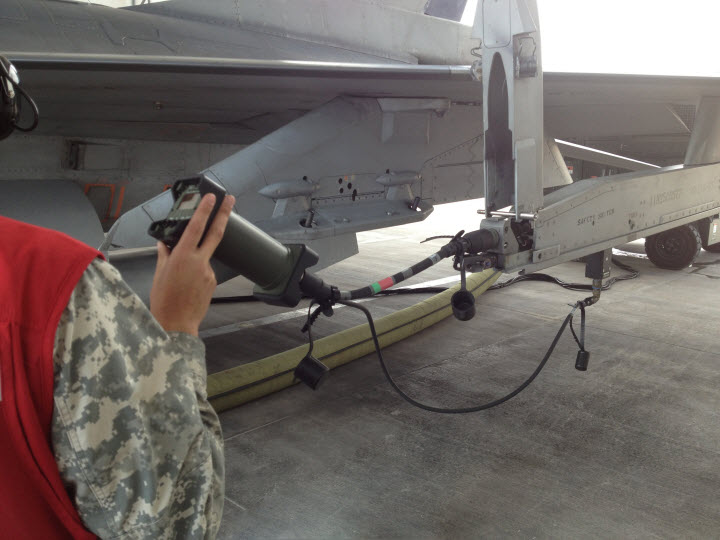

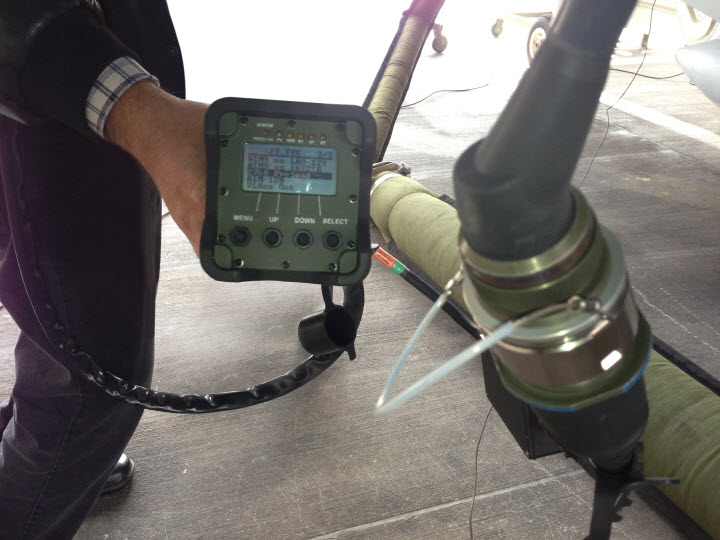

  • Flightline testing of AGM-65 systems
  • AGM-65 interface testing (including video) at LAU-117 or LAU-88 missile umbilical

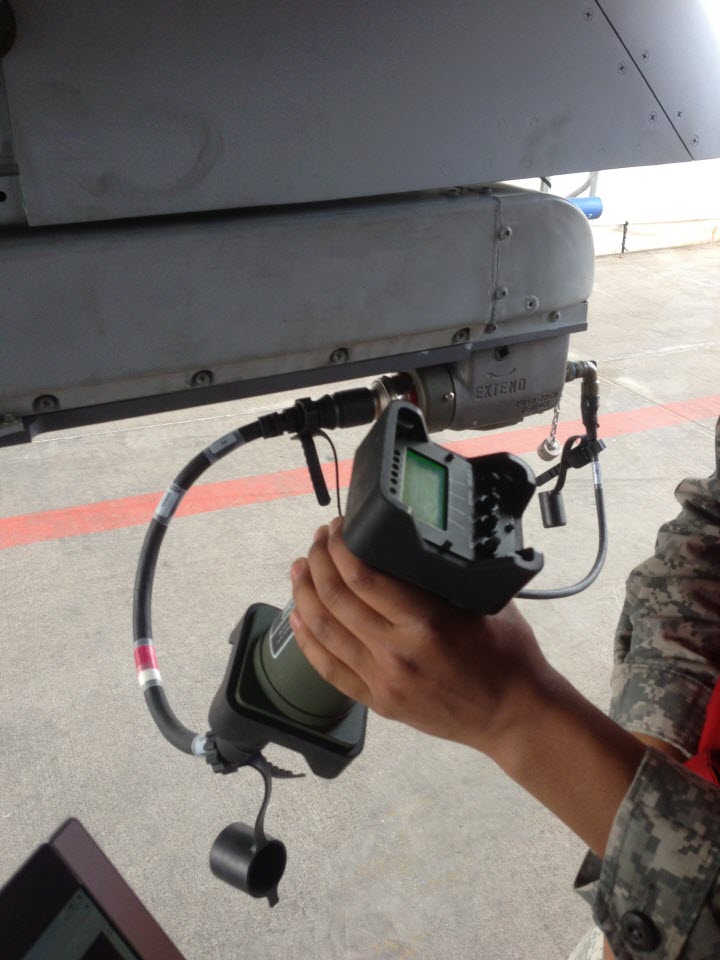

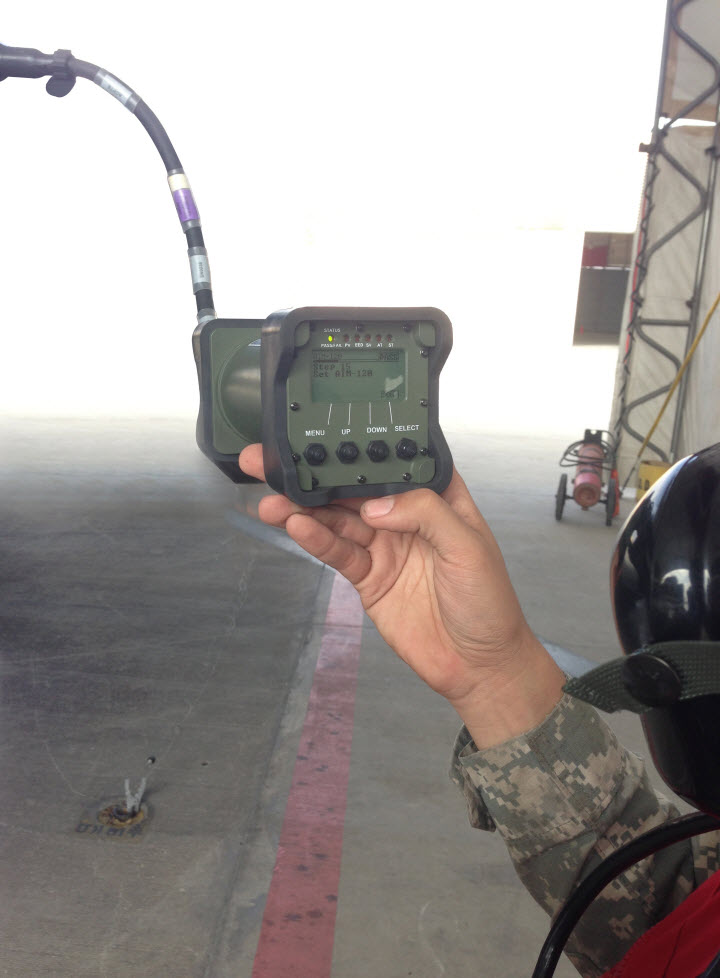

  • AGM-65 interface testing (including video) at aircraft pylon (with launcher removed)
  • Support for many additional weapons systems including missiles and bomb racks
  • Over 30 measurement channels
  • Simultaneous and continuous monitoring of up to 6 Squib firing circuits
  • Optional support for MIL-STD-1760 “smart” weapons systems
  • Audio and video signal generation
  • Detailed test log can provide parametric test data

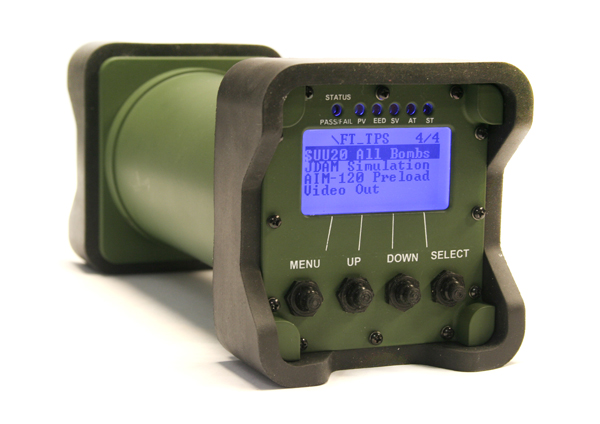

The MTS-3060 AGM-65 is an advanced flight line SmartCan™ tester that enables testing of suspension and Alternate Mission Equipment (AME) including missiles, bombs, and rockets. With multiple measurement channels, dedicated and continuous squib circuit monitoring, multiple load channels, audio and video simulation, and optional MIL-STD-1760 support, the MTS-3060 can support any platform and any legacy or future armament system.

AGM-65 System Support

For the AGM-65 Maverick Missile Systems, the MTS-3060 SmartCan™ offers previously unavailable test capabilities including video verification at the flightline. The MTS-3060 injects video signals that can be viewed in the cockpit to verify that the Maverick video is operating properly. With the ability to test the video with and without the launcher, the MTS-3060 can help troubleshoot video failures and determine if the failures are launcher or aircraft related. Additionally, the
MTS-3060 performs a full test of the AGM-65 interface and can verify the integrity of critical AGM-65 signals including squib lines.

The MTS-3060 can test many additional weapons systems including launchers, bomb racks, and MIL-STD-1760 systems. The MTS-3060 is also compatible with the legacy SERD 75060 beercan and can even interface with existing 75060 cables and adapters.

Maverick missiles


The unique design and features of the MTS-3060 SmartCan provide test capabilities that are not typically available for flightline testing. The MTS-3060 provides more than 30 measurement channels and the capability to simulate legacy and “smart” weapons. The multiple channels alleviate the requirement to use multiple testers when testing armament systems as is done today with legacy testers on F-16 and F-15. The simultaneous testing of multiple squib signals, combined with a unique cross-fire algorithm, provides a robust test process that is superior to the single-channel or dual-channel methods offered by legacy Beercans.

The measurement channels of the SmartCan include:
  • AC/DC high-voltage measurement channels for up to 400V signals
  • DC measurement channels for 4-39VDC with an E-Load capable of loading up to 3.5A per channel
  • Squib measurement signals with continuous monitoring (threshold detector) and parametric testing
  • Specific measurement channels for grounds
  • General-purpose measurement channels for -2V to +50V signals

The MTS-3060 can generate audio and video signals required to simulate missile functions and provide a more robust test. Two channels of audio and one channel of video can be simultaneously generated. The audio and video test capabilities allow the MTS-3060 to effectively test AGM-65 and AIM-9 systems.

An innovative power management system allows operation of the SmartCan for over 24 hours without the need to replace the standard four AA batteries. This extended operation is achieved using sleep modes and drawing power from the AME when available. With multiple measurement channels internal to the SmartCan, the adapter cables have been simplified, and most do not require any selectors or electronics (as the legacy adapters do).

With a sunlight-readable LCD display and multi-function keys, the MTS-3060 provides more capabilities, more test instructions, and more test information than other flightline beercan testers. During test, the display's background color indicates test status, with green demoting a passing test and red denoting a test that failed. The LCD can also display the actual test results of the last test run.

Weapons Simulation

With its weapons simulation capabilities, the MTS-3060 offers a more robust test with expanded fault coverage. Weapons simulation features include:

  • Major functions of missiles for missile launchers testing of LAU-117, LAU-88, 16S210, and LAU-129
  • JDAM for MIL-STD-1760 testing
  • Major functions of bombs and rockets for TER-9 and SUU-20 testing
  • Major functions of launchers for preload testing
  • Major functions for F-16 Internal Gun pickup
  • Audio signals including frequency sweep
  • RS-170 Video signal

Built-In Test and Self-Test

The MTS-3060 contains a Built-In-Test (BIT) that provides verification of major circuits. A comprehensive Self-Test verifies the MTS-3060’s performance including the cables and adapters using a self-test adapter. BIT and Self-Test can be performed at the flightline or at the backshop; no special external test equipment is required other than the self-test adapter.


The MTS-3060 employs an innovative calibration technique that further simplifies maintenance and reduces scheduled maintenance down-time and associated logistics. Multiple NIST-traceable, high-precision references have been incorporated into the design of the self-test, and the MTS-3060 verifies its calibration status against these references every time the self-test is performed. In the event the MTS-3060 is out of calibration, the test set initiates an automated calibration procedure that calibrates the MTS-3060 measurement and stimulus devices against the built-in references. The references have to be checked once every 4 years using standard PMEL equipment that can be brought to the field and does not require evacuation of the test set to the depot or the PMEL facility.

Rugged Construction

The rugged construction of the MTS-3060 facilitates field and flightline operation. The MTS-3060’s ability to operate in adverse weather conditions makes it the ultimate tool for flightline testing. Additional protection has been included in the MTS-3060 to minimize equipment damage if the SmartCan is dropped by the user. The MTS-3060 is ergonomically designed for ease of use and will not roll when placed on angled surfaces.

Improved Adapters

While the MTS-3060 supports legacy SERD 75060 adapters, the MTS-3060 can also be provided with new adapters and cables that are more reliable and cost-effective. The design of the MTS-3060  means that the majority of switching and testing is performed internally by the SmartCan, resulting in a streamlined and simplified adapter design for increased reliability.

Connectivity and Upgradability

The MTS-3060 SmartCan contains a USB interface, allowing log files of the last test run for each weapon to be easily moved to a computer for printing and analysis. This feature is especially important when failures occur and the availability of data for further analysis is critical to the timely repair of the aircraft.

The MTS-3060’s USB interface also simplifies firmware updates without the need to ship the test set back to the depot or to the manufacturer. Additional test programs supporting new weapons systems can also be added this way.


  • AGM-65 systems testing and troubleshooting
  • Flightline pre-load tester
  • Missile simulation
MTS-3060 adapters

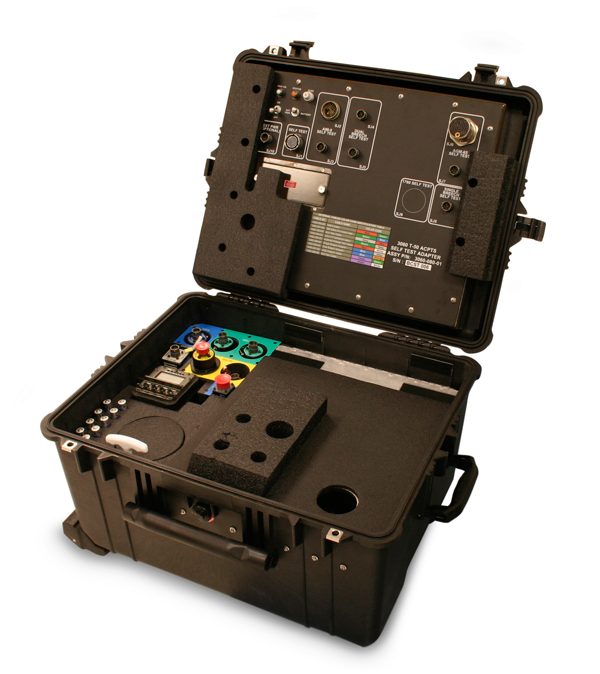

SmartCan Kit
